Close the loop

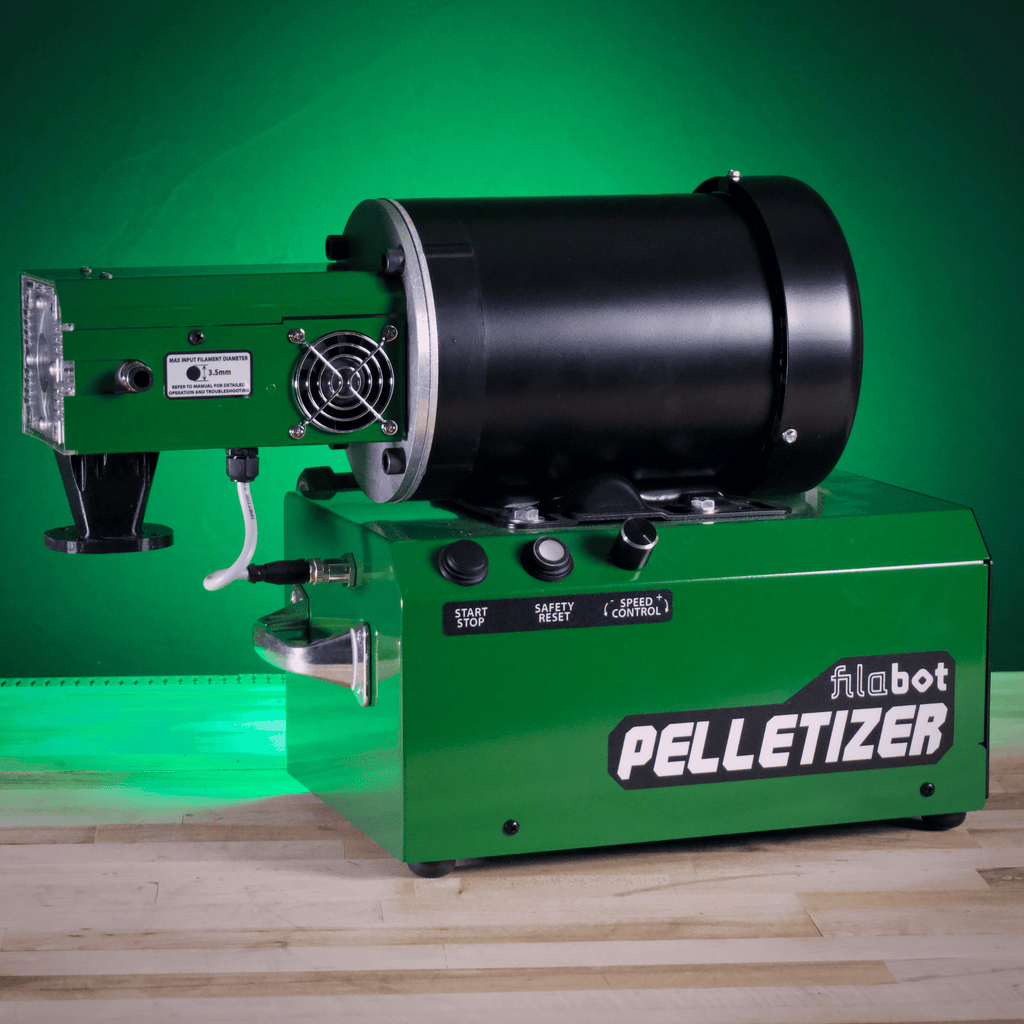

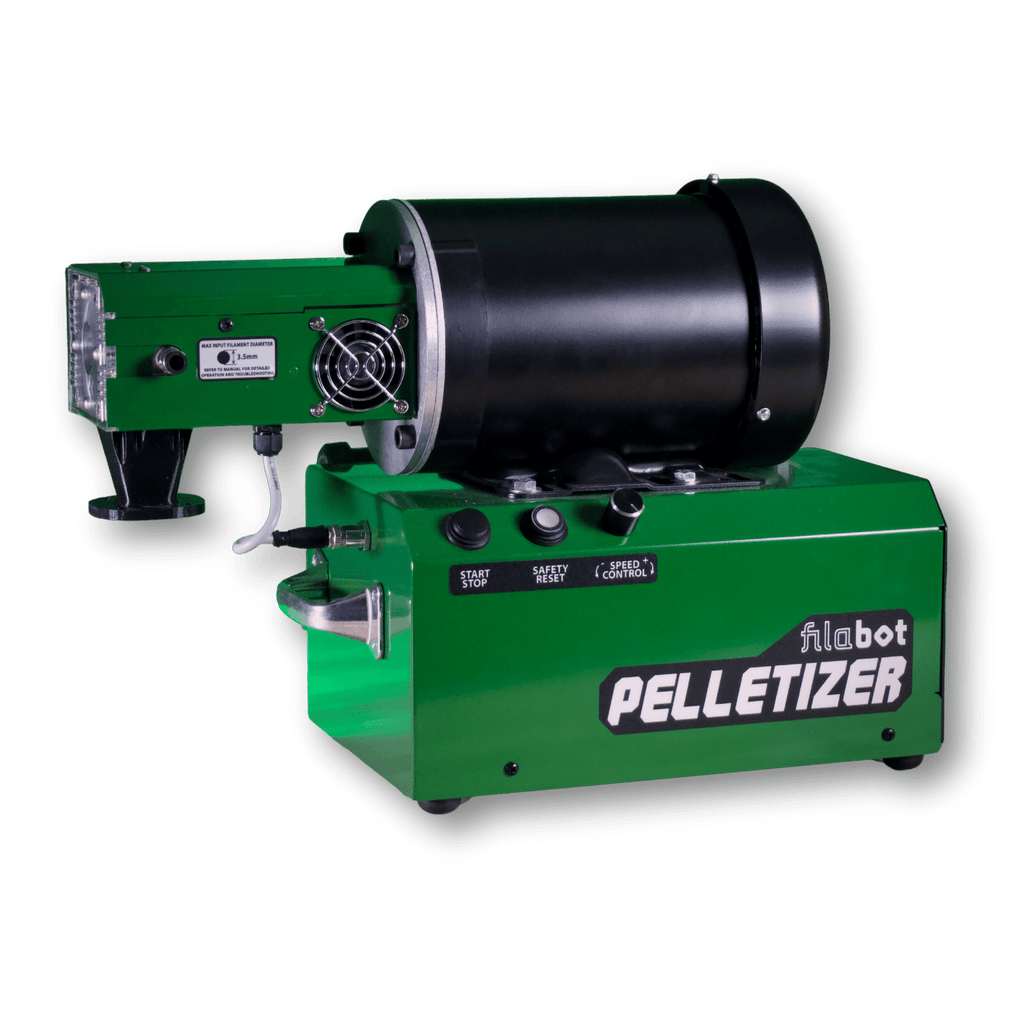

Recycled plastic rarely comes out of the extruder in-spec on the first pass. Filabot's proven workflow is two-stage: extrude shredded regrind into a rough strand, pelletize it, then re-extrude the uniform pellets into final, print-ready filament. The Pelletizer makes that second stage fast and clean, producing consistent pellets that feed evenly into the EX3 or EX6. It is equally useful for compounding your own material blends or producing pellets for injection molding.
Key features
- Inline or standalone operation — manually feed filament, or integrate with the Filabot Spooler for inline chopping direct from extrusion.
- Adjustable pellet length — the blade-speed knob produces pellets 1–3 mm long (faster for shorter cuts, slower for longer).
- Filament size compatibility — works with filament from 1 mm to 3.5 mm in diameter.
- Built for rigid and compounded materials — including carbon- and glass-filled polymers (not intended for TPU or other soft elastomers).
- Simple front-panel controls — Start/Stop, safety-reset interlock, main power switch and speed control.
- Spooler integration kit — included hose and mount snap onto the Filabot Spooler.
- Serviceable cutter head — blades can be re-adjusted to extend life and replaced when needed.
Part of the Filabot Modular Ecosystem
Every Filabot machine is a building block. The equipment is modular, so you can start with the workflow you need today and expand later—adding cooling, measurement, spooling, pelletizing or shredding—without replacing what you already own. All units are bench-top sized and run on standard 110 V single-phase power (no 3-phase required), so a complete line fits comfortably next to your 3D printers.
The Pelletizer covers the Pelletize stage and is included in the three Full Recycling Bundles. How it combines with the rest of the line:

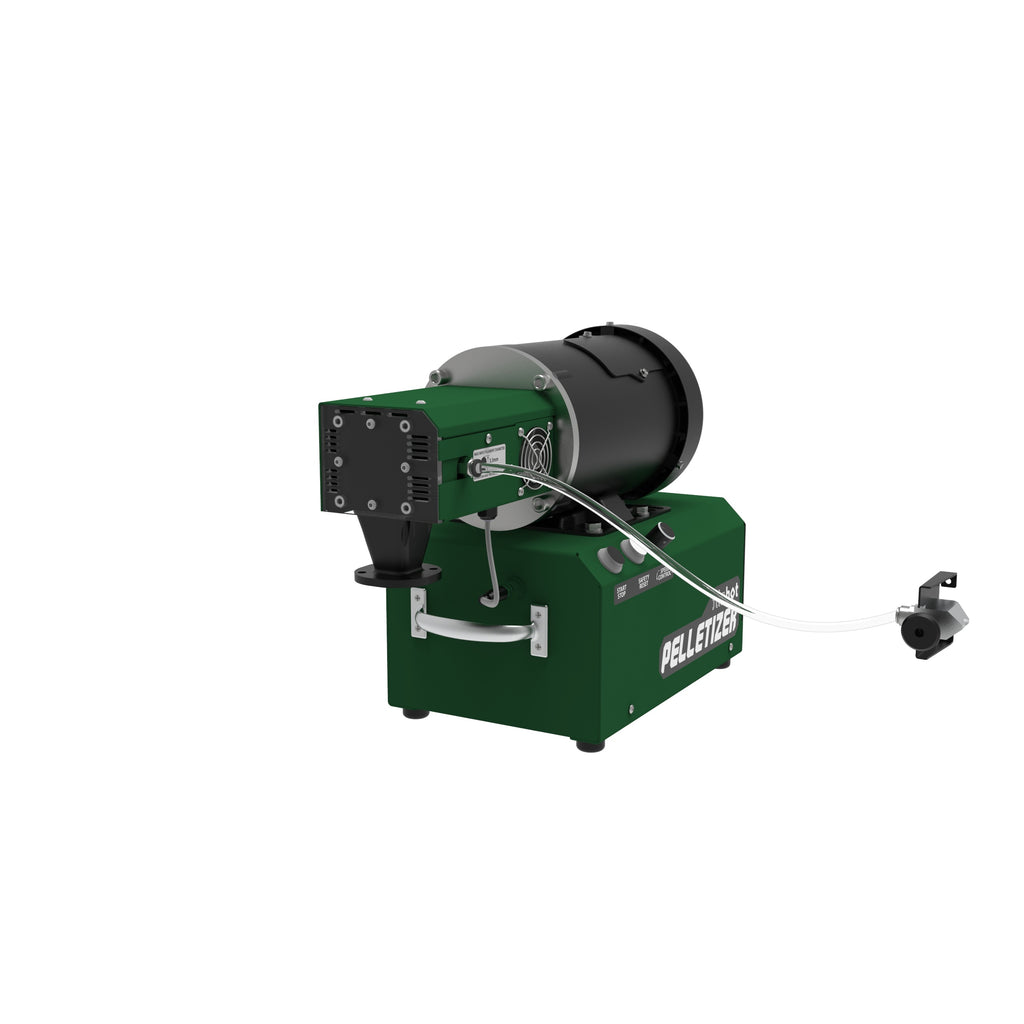

- Mounts to the Spooler with the included hose connector to chop filament as it is extruded.
- Takes rough first-pass filament from the EX3 Filament Extruder, EX6 Standard Filament Extruder or EX6 Industrial Filament Extruder and returns uniform pellets to the extruder hopper for the final pass.
- Pairs with the Reclaimer to complete the loop: shred → extrude → pelletize → extrude to final filament.
- Use the Filameasure on the final pass to confirm the re-extruded filament holds diameter.
| Product | Stage | Role in the line |
|---|---|---|
| Reclaimer | Reclaim | Two-stage shredder + granulator turns failed prints and scrap into extrudable granulate. |
| EX3 Filament Extruder | Extrude | Accessible, compact extruder for education, makerspaces, recycling and early-stage material development. |
| EX6 Standard Filament Extruder | Extrude | Professional 24:1 extruder with four PID heat zones and 4+ kg/hr output for R&D and production. |
| EX6 Industrial Filament Extruder | Extrude | EX6 with nitrided barrel and screw for abrasive, filled and reinforced compounds. |
| Airpath Filament Cooler | Cool | Forced-convection cooling that stabilizes filament diameter before it reaches the Spooler. |
| Filameasure | Measure | Inline diameter gauge with Filalogger data logging; mounts to the Spooler. |
| Spooler | Spool | Pulls, traverses and winds finished filament onto 0.5 kg / 1 kg spools. |
| Pelletizer (this product) | Pelletize | Chops filament into uniform pellets for re-extrusion, compounding or injection molding. |
Prefer a complete, pre-configured system?
Filabot bundles are priced below the sum of their parts:
- EX3 Filament Maker Bundle — EX3 + Airpath + Spooler + Filameasure (with Filalogger)
- EX6 Filament Maker Bundle — EX6 Standard + Airpath + Spooler + Filameasure (with Filalogger)
- EX6 Industrial Filament Maker Bundle — EX6 Industrial + Airpath + Spooler + Filameasure (with Filalogger)
- EX3 Full Recycling Bundle — Reclaimer + EX3 + Airpath + Spooler + Pelletizer
- EX6 Standard Full Recycling Bundle — Reclaimer + EX6 Standard + Airpath + Spooler + Pelletizer
- EX6 Industrial Full Recycling Bundle — Reclaimer + EX6 Industrial + Airpath + Spooler + Pelletizer
Compatible materials
ABS, PLA, PEI (ULTEM), PEEK, PS, HIPS and other rigid or compounded materials, including carbon- and glass-filled polymers. Does not cut TPU or other soft materials.
What's included
- Filabot Pelletizer
- Filabot Spooler hose connector and mount
- Pellet collection bags
- Power cord
- User manual
Specifications
| Power input | 115 VAC 10 A, 50/60 Hz single-phase; 350 W nominal (IEC 320-C14 inlet) |
| Drive | 230 V 3-phase variable-frequency drive (internal); 1/2 HP inverter-duty motor, 1,725 RPM |
| Rotating cutter | Standard 5/8" shank 6-flute HSS end mill, 1" OD |
| Stationary blade | 1" wide × 0.25" thick, M2 high-speed hardened steel |
| Input filament size | 1–3.5 mm |
| Pellet length | 1–3 mm, adjustable |
| Max output | Approximately 6 lb/hr (2.7 kg/hr) |
| Noise level | About 60 dB during operation |
| Dimensions | 8.29 in L × 4.13 in W × 5.57 in H (21.05 × 10.49 × 14.16 cm) cutter housing |
| Weight | 45 lb (20 kg) |
| Tools required | #2 Phillips screwdriver, 5/32" and 3/16" Allen wrenches |
| Country of origin | USA (Barre, Vermont) |
Resources
- Filabot Pelletizer Datasheet (PDF)
- Filabot Selection Guide 2026 (PDF) — choosing between the EX3, EX6 Standard and EX6 Industrial
About Filabot
Filabot is a Vermont-based engineering and R&D company that has built filament-making and small-scale polymer-processing systems since 2011. Thousands of systems are in use worldwide, and Filabot equipment has been referenced in more than 1,300 published research articles. Filabot provides direct technical support, installation and material-processing guidance, a processing-settings database, and curriculum resources for educators.
