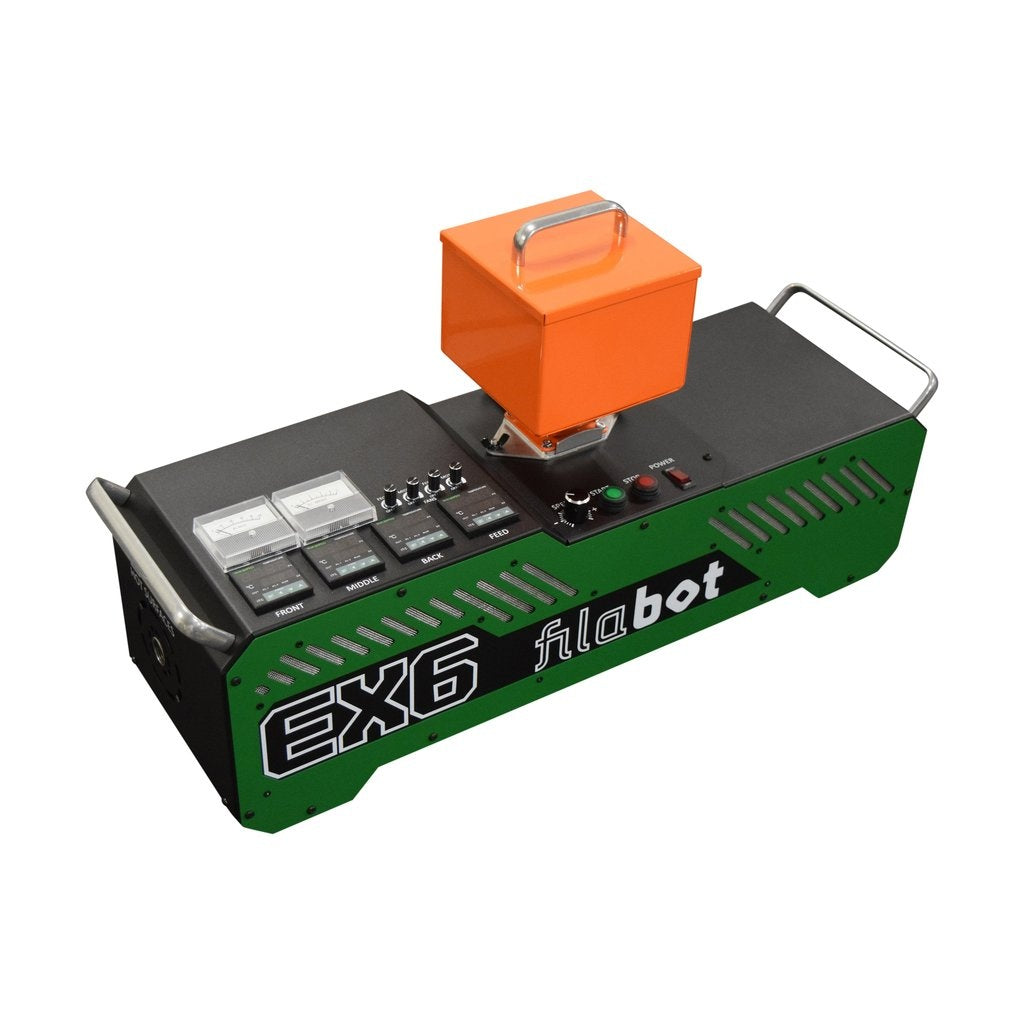

Filabot EX6 Industrial Filament Maker Bundle
Complete EX6 Industrial filament-making system
By Filabot
Request A Quote
To request a quote, please fill out the form below.
You can also call us at 800-689-4344 or email us at info@3duniverse.org.
Or fill out the form below, and we'll reach out within one business day.
Teachers, Educators, & Administrators
If you're part of an academic institution, we're committed to collaborating with you to arrange exclusive pricing and flexible payment options. Simply request a quote using the form below to get started, and when you're ready to order, we'll provide Net 30 payment terms for qualifying organizations.
State & Local Goverment Agencies
We offer special pricing for government agencies. 3D Universe is an authorized GSA contractor and has UEI, CAGE, and SAM codes available. Simply request a quote using the form below to get started, and when you're ready to order, we'll provide Net 30 payment terms for qualifying organizations.
Everything you need to make filament—in one box

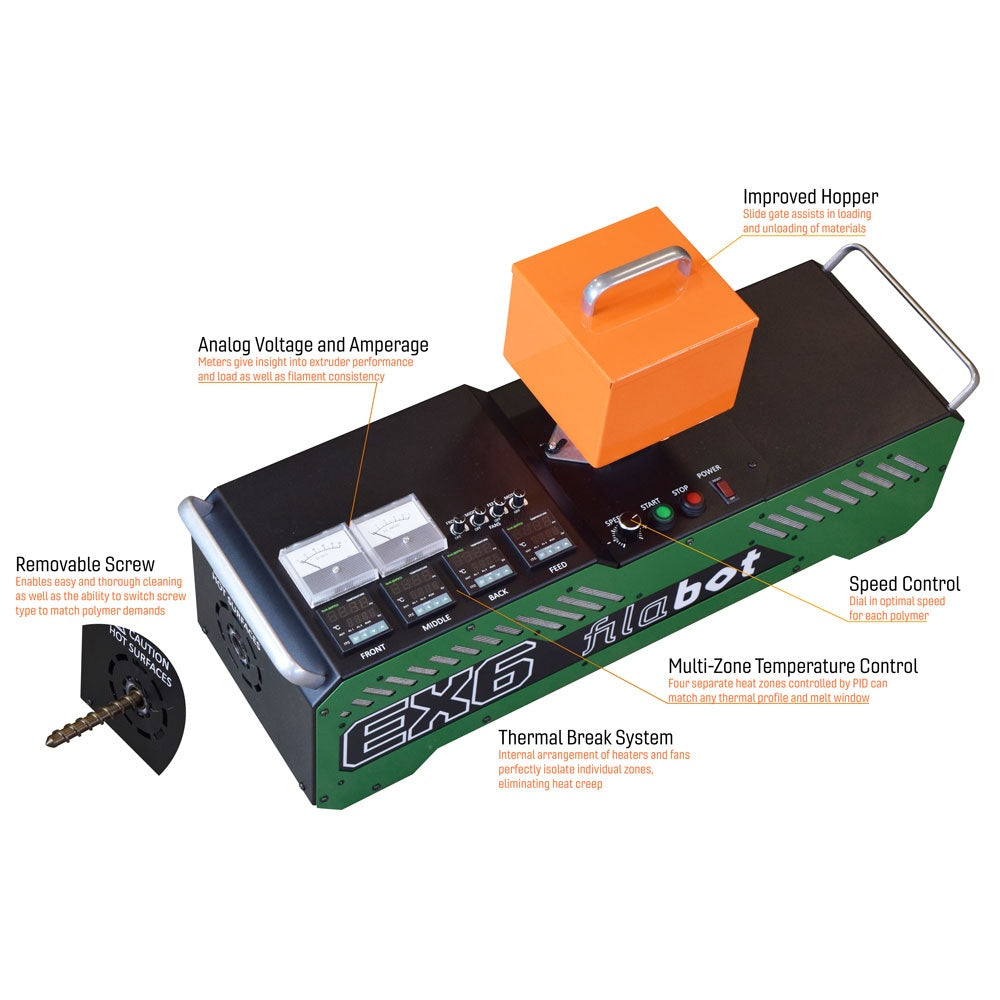

The EX6 Industrial Filament Maker Bundle pairs the EX6 Industrial Filament Extruder with the downstream equipment that turns a hot strand into a spool you can load straight into your 3D printer. The Airpath stabilizes the filament as it leaves the nozzle, the Spooler pulls it at a controlled speed and winds it evenly, and the Filameasure gauge with Filalogger software shows you diameter in real time and logs it for every spool. Buying the bundle costs less than purchasing the four products individually.
Who it's for
- Industrial R&D and manufacturing — EX6 process flexibility with nitrided components for demanding operating environments.
- Compounders working with glass, carbon, ceramic and mineral fillers — wear resistance for high-wear additives.
- Filament manufacturers — abrasive products and frequent extended production runs.
- Universities whose programs routinely include highly filled or abrasive formulations.
Fast payback. A school, makerspace or print farm that recycles roughly 2,000 kg of material a year can pay back a complete Filabot system in under six months versus buying new filament—while teaching hands-on polymer science along the way.
What's in the bundle
- EX6 Industrial Filament Extruder — with removable screw, 1.75 mm and 2.85 mm nozzles, cleaning kit, purge material, user manual and power cord
- Airpath Filament Cooler — six-fan forced-convection cooler with variable speed and digital readout
- Spooler — precision puller/winder with adjustable traverse and tension clutch for 0.5 kg and 1 kg spools
- Filameasure — Mitutoyo inline gauge with Filalogger SPC unit and software (laptop/tablet not included)
How the line works
- Feed pellets, powder, additives or dried regrind into the extruder hopper.
- Extrude — the screw melts, mixes and pressurizes the polymer through the nozzle.
- Cool — the Airpath brings the strand to a stable temperature.
- Measure — the Filameasure reads diameter live; adjust Spooler speed to hold tolerance.
- Spool — the Spooler winds even, tangle-free layers.
- Print.
Part of the Filabot Modular Ecosystem
Every Filabot machine is a building block. The equipment is modular, so you can start with the workflow you need today and expand later—adding cooling, measurement, spooling, pelletizing or shredding—without replacing what you already own. All units are bench-top sized and run on standard 110 V single-phase power (no 3-phase required), so a complete line fits comfortably next to your 3D printers.
Grow the system when you're ready:
- Add the Pelletizer to chop filament into pellets for re-extrusion, compounding or injection molding.
- Add the Reclaimer to shred failed prints and scrap—or choose a Full Recycling Bundle from the start.
- Add a second Airpath for high-temperature polymers, or ask us about the Filabot Waterbath and 10 kg Spooler Max for extended production runs.
| Product | Stage | Role in the line |
|---|---|---|
| Reclaimer | Reclaim | Two-stage shredder + granulator turns failed prints and scrap into extrudable granulate. |
| EX3 Filament Extruder | Extrude | Accessible, compact extruder for education, makerspaces, recycling and early-stage material development. |
| EX6 Standard Filament Extruder | Extrude | Professional 24:1 extruder with four PID heat zones and 4+ kg/hr output for R&D and production. |
| EX6 Industrial Filament Extruder (this product) | Extrude | EX6 with nitrided barrel and screw for abrasive, filled and reinforced compounds. |
| Airpath Filament Cooler (this product) | Cool | Forced-convection cooling that stabilizes filament diameter before it reaches the Spooler. |
| Filameasure (this product) | Measure | Inline diameter gauge with Filalogger data logging; mounts to the Spooler. |
| Spooler (this product) | Spool | Pulls, traverses and winds finished filament onto 0.5 kg / 1 kg spools. |
| Pelletizer | Pelletize | Chops filament into uniform pellets for re-extrusion, compounding or injection molding. |
Prefer a complete, pre-configured system?
Filabot bundles are priced below the sum of their parts:
- EX3 Filament Maker Bundle — EX3 + Airpath + Spooler + Filameasure (with Filalogger)
- EX6 Filament Maker Bundle — EX6 Standard + Airpath + Spooler + Filameasure (with Filalogger)
- EX6 Industrial Filament Maker Bundle — EX6 Industrial + Airpath + Spooler + Filameasure (with Filalogger)
- EX3 Full Recycling Bundle — Reclaimer + EX3 + Airpath + Spooler + Pelletizer
- EX6 Standard Full Recycling Bundle — Reclaimer + EX6 Standard + Airpath + Spooler + Pelletizer
- EX6 Industrial Full Recycling Bundle — Reclaimer + EX6 Industrial + Airpath + Spooler + Pelletizer
Specifications
| Extruder | See the EX6 Industrial Filament Extruder page for full specifications |
| Filament sizes | 1.75 mm and 2.85 mm (other nozzle sizes available) |
| Power | Each machine is powered independently on 110 V single-phase; plan for multiple outlets. Approximate max connected load: ~1,800 W (EX6 setup) |
| Warranty | 3-year warranty (Filameasure 1 year) |
| Country of origin | USA (Barre, Vermont) |
Resources
- Filabot EX6 Industrial Datasheet (PDF)
- Filabot Selection Guide 2026 (PDF) — choosing between the EX3, EX6 Standard and EX6 Industrial
About Filabot
Filabot is a Vermont-based engineering and R&D company that has built filament-making and small-scale polymer-processing systems since 2011. Thousands of systems are in use worldwide, and Filabot equipment has been referenced in more than 1,300 published research articles. Filabot provides direct technical support, installation and material-processing guidance, a processing-settings database, and curriculum resources for educators.
NOTE: 3D Universe is authorized to sell this product in the USA only. Filabot equipment ships from the manufacturer; the Reclaimer and Full Recycling Bundles ship via freight.
