From material exploration to filament production

The EX6 is not simply a larger EX3. Its long 24:1 L/D screw gives the polymer a gentle, thorough melt with excellent mixing, four independently controlled heat zones let you shape a material-specific thermal profile, and higher output means you move from formulation to a usable spool sooner—and keep up when demand grows. Screws can be removed in minutes for cleaning or swapped for other profiles to match the processing requirements of each polymer, so screw design itself becomes a variable you can test and optimize.

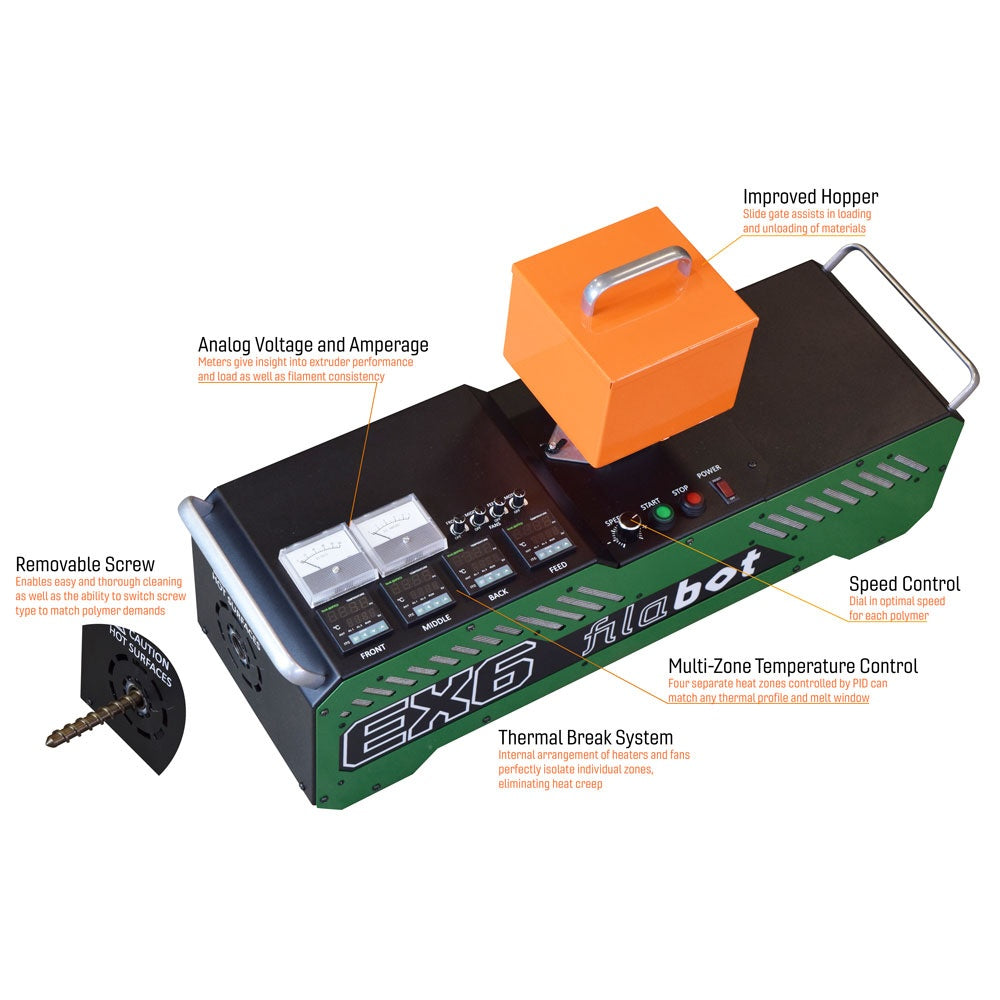

Key features

• Speed control — an automatic variable-voltage module regulates screw RPM precisely (0–100 RPM) to dial in residence time, throughput and consistency.
• Multi-zone temperature control — three PID-controlled barrel zones plus a PID-controlled feed-throat zone match any thermal profile and melt window.
• Thermal break system — the internal arrangement of heaters and fans isolates individual zones and eliminates heat creep.
• Removable screw — easy, thorough cleaning and the ability to switch screw type (several profiles available) to match polymer demands.
• Analog voltage & amperage meters — insight into extruder load, performance and filament consistency.
• Improved hopper — slide gate assists loading and unloading of material.
• Industrial throughput — more than 10 lb (4.5 kg) per hour of PLA at the nozzle, with a target of a quality 1 kg spool in under 30 minutes when material and setup permit.

Who it's for

• Polymer and material developers who need rapid formulation cycles and control over every process variable.
• Universities and research institutes that need one flexible, visible platform for changing projects, materials and users.
• Specialty filament producers and additive manufacturers who want more output, custom products and supply independence.
• Recycling and circular-manufacturing programs converting production scrap into repeatable filament.
• Working with abrasive, glass- or carbon-filled compounds as a routine part of your program? Choose the EX6 Industrial Filament Extruder instead.

Fast payback. A school, makerspace or print farm that recycles roughly 2,000 kg of material a year can pay back a complete Filabot system in under six months versus buying new filament—while teaching hands-on polymer science along the way.

Part of the Filabot Modular Ecosystem

Every Filabot machine is a building block. The equipment is modular, so you can start with the workflow you need today and expand later—adding cooling, measurement, spooling, pelletizing or shredding—without replacing what you already own. All units are bench-top sized and run on standard 110 V single-phase power (no 3-phase required), so a complete line fits comfortably next to your 3D printers.

The EX6 covers the Extrude stage. Complete the line:

• Airpath Filament Cooler — forced-convection cooling that stabilizes diameter and allows higher line speeds (add a second Airpath for high-temperature polymers).
• Spooler — pull, traverse and wind onto 0.5 kg / 1 kg spools; adjustable puller speed fine-tunes diameter.
• Filameasure — live inline diameter measurement with Filalogger logging, mounted on the Spooler.
• Pelletizer — turn filament into uniform pellets for re-extrusion, compounding or injection molding.
• Reclaimer — shred failed prints and scrap into granulate the EX6 can process.
• Already own an EX3 Filament Extruder? The EX6 drops into the same line; all of your downstream Filabot equipment carries over.

Prefer a complete, pre-configured system?

Filabot bundles are priced below the sum of their parts:

• EX3 Filament Maker Bundle — EX3 + Airpath + Spooler + Filameasure (with Filalogger)
• EX6 Filament Maker Bundle — EX6 Standard + Airpath + Spooler + Filameasure (with Filalogger)
• EX6 Industrial Filament Maker Bundle — EX6 Industrial + Airpath + Spooler + Filameasure (with Filalogger)
• EX3 Full Recycling Bundle — Reclaimer + EX3 + Airpath + Spooler + Pelletizer
• EX6 Standard Full Recycling Bundle — Reclaimer + EX6 Standard + Airpath + Spooler + Pelletizer
• EX6 Industrial Full Recycling Bundle — Reclaimer + EX6 Industrial + Airpath + Spooler + Pelletizer

Compatible materials

PLA, PC, PETG, PET/PETE, PP, PE (HDPE, LDPE, LLDPE), PEI (ULTEM), PEEK, Nylon (PA), UHMW, TPE, wax, ABS*, HIPS*, PS*; virgin pellets, recycled regrind, powders and mild additives. *Ensure proper ventilation and filtration—can emit harmful fumes. Final compatibility depends on screw, nozzle, processing conditions and formulation.

What's included

• EX6 Filament Extruder (110 VAC)
• Removable standard screw
• 1.75 mm and 2.85 mm nozzles
• Extruder cleaning kit (brass wire wheel, brass pipe cleaner with extension rod, 10 ft copper gauze, screw removal tool, anti-seize, 2 packages of purge, oven mitts)
• User manual and power cord

Specifications

*Published output is PLA mass flow at the nozzle. Finished filament throughput depends on polymer, formulation, diameter, cooling and spooling.

Resources

• Filabot EX6 Standard Datasheet (PDF)
• Filabot Selection Guide 2026 (PDF) — choosing between the EX3, EX6 Standard and EX6 Industrial

About Filabot

Filabot is a Vermont-based engineering and R&D company that has built filament-making and small-scale polymer-processing systems since 2011. Thousands of systems are in use worldwide, and Filabot equipment has been referenced in more than 1,300 published research articles. Filabot provides direct technical support, installation and material-processing guidance, a processing-settings database, and curriculum resources for educators.

NOTE: 3D Universe is authorized to sell this product in the USA only. Filabot equipment ships from the manufacturer; the Reclaimer and Full Recycling Bundles ship via freight.
