Filabot Filameasure Inline Filament Measurement (Complete Package)
Inline diameter measurement with Filalogger data logging
By Filabot
Request A Quote
To request a quote, please fill out the form below.
You can also call us at 800-689-4344 or email us at info@3duniverse.org.
Or fill out the form below, and we'll reach out within one business day.
Teachers, Educators, & Administrators
If you're part of an academic institution, we're committed to collaborating with you to arrange exclusive pricing and flexible payment options. Simply request a quote using the form below to get started, and when you're ready to order, we'll provide Net 30 payment terms for qualifying organizations.
State & Local Goverment Agencies
We offer special pricing for government agencies. 3D Universe is an authorized GSA contractor and has UEI, CAGE, and SAM codes available. Simply request a quote using the form below to get started, and when you're ready to order, we'll provide Net 30 payment terms for qualifying organizations.
Measure it as you make it
Consistent diameter is what makes home-made filament print reliably. The Filameasure reads diameter live as filament passes through the Spooler so you can tune puller speed and extruder settings immediately and lock in a print-ready diameter (Filabot's typical tolerance with standard materials is ±0.05 mm). A built-in tension applicator keeps contact consistent, and the full-size/tolerance-variation readout makes drift obvious at a glance. Add Filalogger and every spool gets a traceable record: live diameter graphs on screen and automatic CSV logs for quality control, research data and spool reports.
Key features

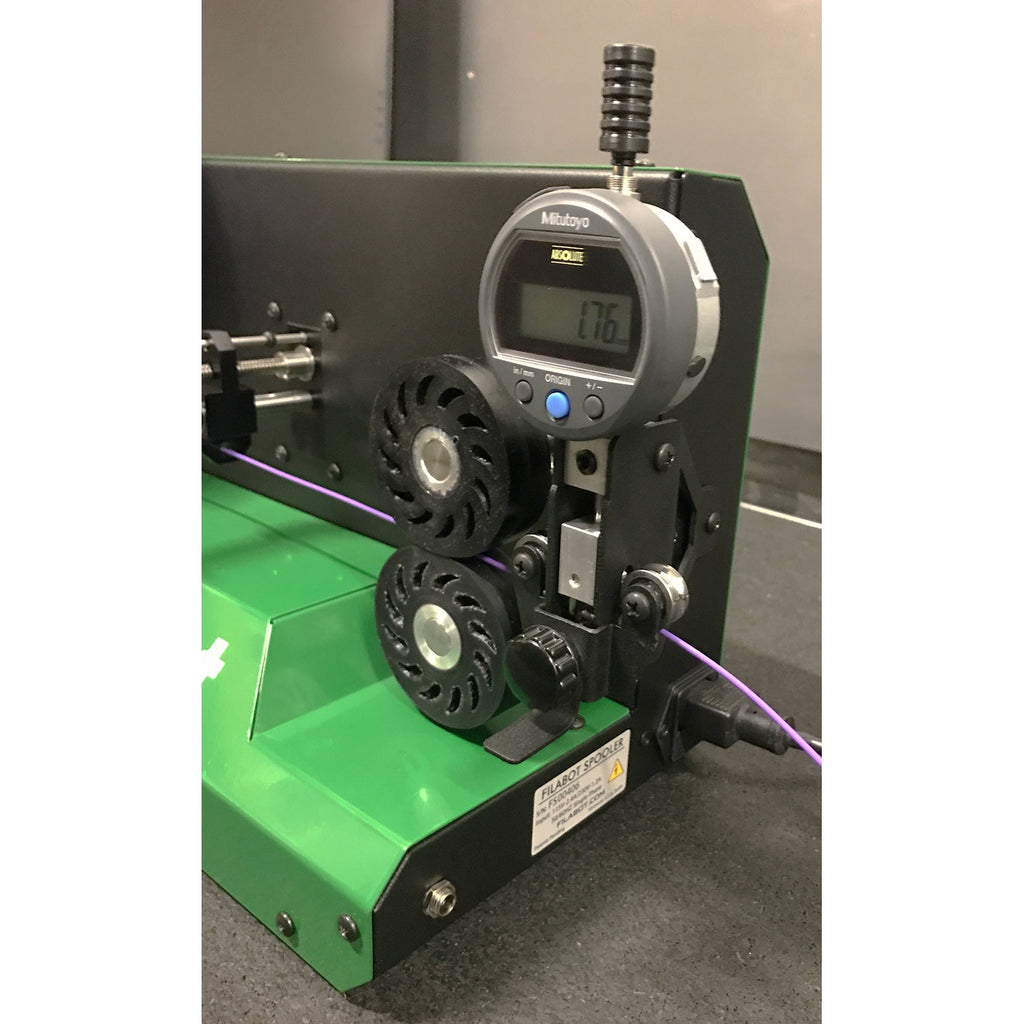

- Inline diameter measurement — mounts to the Filabot Spooler (or Spooler Max) to measure filament live as it is produced.
- 0–5 mm measurement range — common sizes (1.75 mm, 2.85 mm) and specialty diameters for R&D or custom runs.

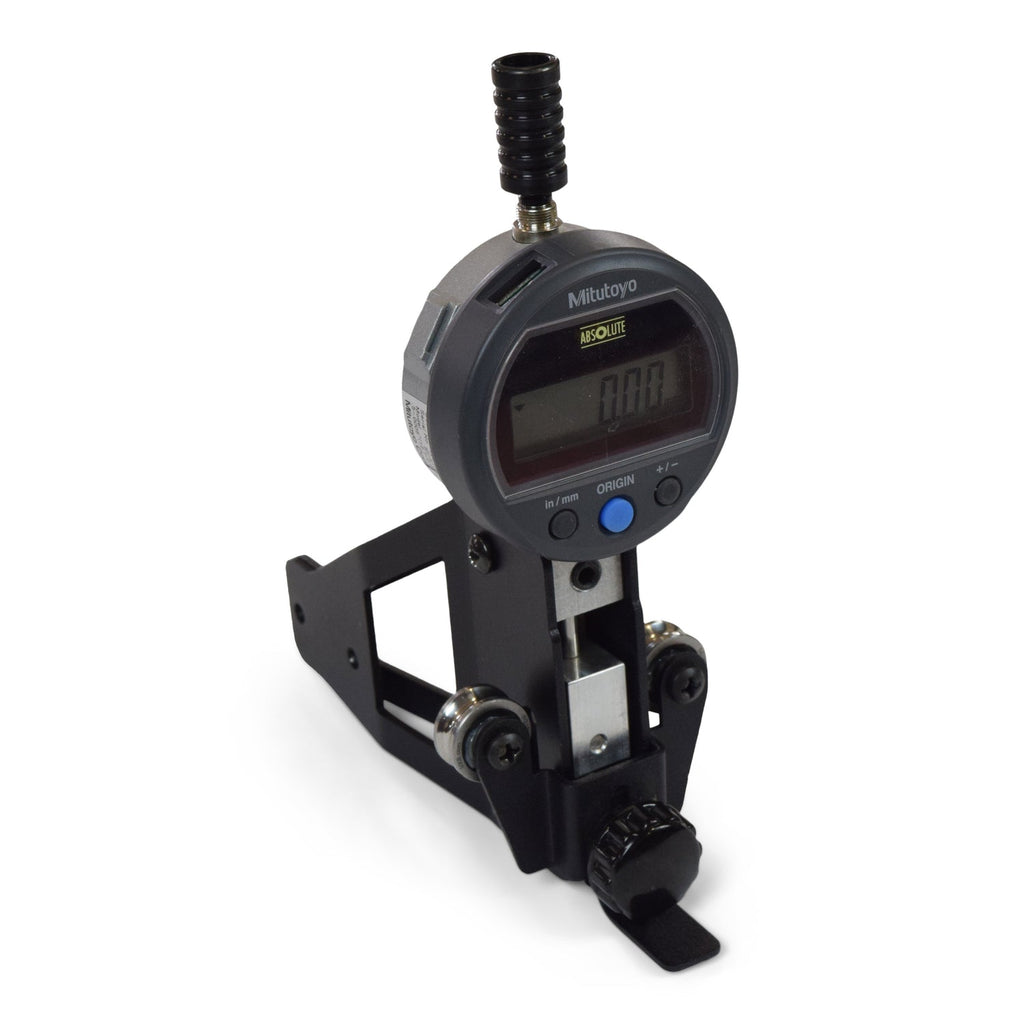

- Mitutoyo digital indicator — a top-of-the-line gauge with full-size reading and tolerance-variation window.

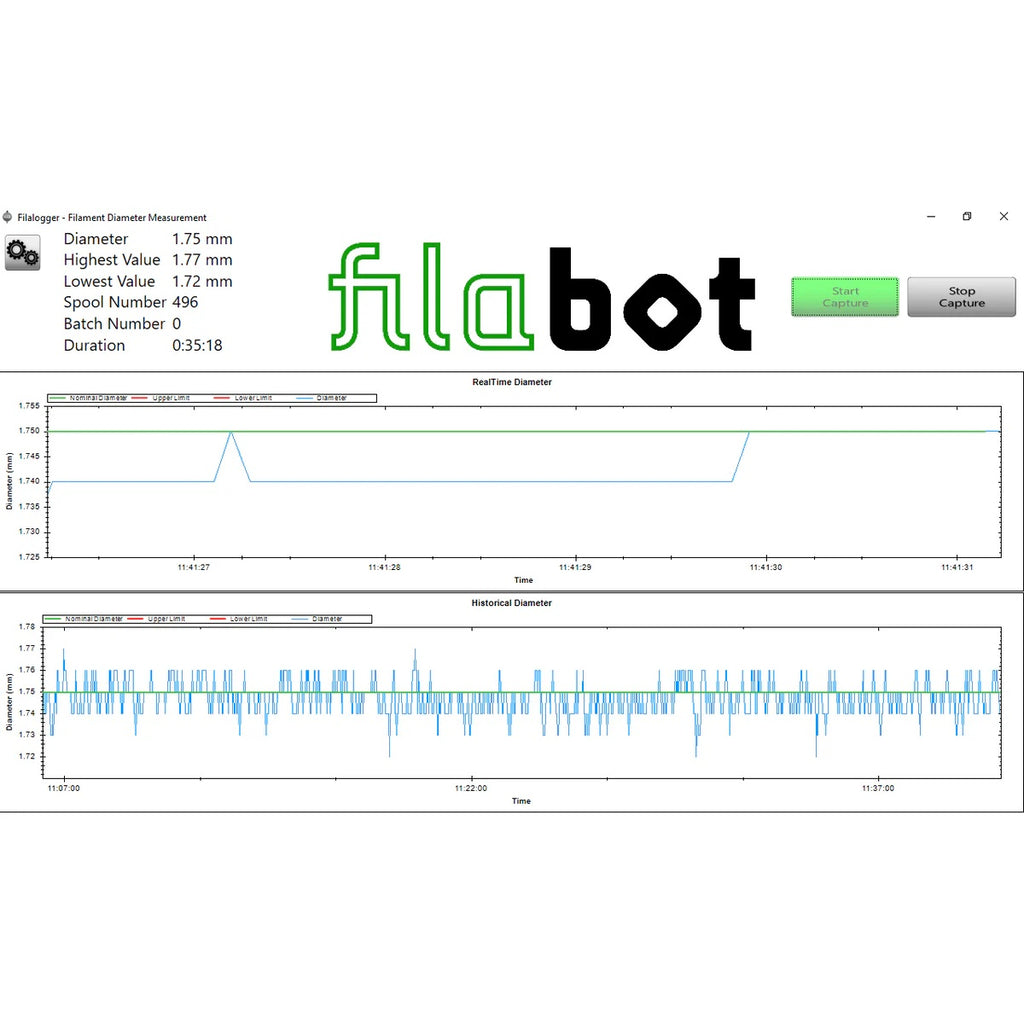

- Filalogger SPC + software — live graphing and CSV logging of diameter over time on Windows and macOS.
- Built-in tension applicator — applies consistent contact to stabilize readings during extrusion.
- Rugged, simple build — 13 oz unit that installs in minutes.
Part of the Filabot Modular Ecosystem
Every Filabot machine is a building block. The equipment is modular, so you can start with the workflow you need today and expand later—adding cooling, measurement, spooling, pelletizing or shredding—without replacing what you already own. All units are bench-top sized and run on standard 110 V single-phase power (no 3-phase required), so a complete line fits comfortably next to your 3D printers.
The Filameasure covers the Measure stage and is included in the three Filament Maker Bundles. How it combines with the rest of the line:
- Requires the Spooler (or Spooler Max) — the gauge mounts to the Spooler frame and reads filament as it is pulled.
- Use the readout to balance output from the EX3 Filament Extruder, EX6 Standard Filament Extruder or EX6 Industrial Filament Extruder against Spooler pull speed.
- Pair with the Airpath Filament Cooler so filament is fully stabilized before it reaches the gauge.
- Building a recycling loop with the Reclaimer and Pelletizer? Filalogger logs let you document how recycled blends hold diameter batch after batch.
| Product | Stage | Role in the line |
|---|---|---|
| Reclaimer | Reclaim | Two-stage shredder + granulator turns failed prints and scrap into extrudable granulate. |
| EX3 Filament Extruder | Extrude | Accessible, compact extruder for education, makerspaces, recycling and early-stage material development. |
| EX6 Standard Filament Extruder | Extrude | Professional 24:1 extruder with four PID heat zones and 4+ kg/hr output for R&D and production. |
| EX6 Industrial Filament Extruder | Extrude | EX6 with nitrided barrel and screw for abrasive, filled and reinforced compounds. |
| Airpath Filament Cooler | Cool | Forced-convection cooling that stabilizes filament diameter before it reaches the Spooler. |
| Filameasure (this product) | Measure | Inline diameter gauge with Filalogger data logging; mounts to the Spooler. |
| Spooler | Spool | Pulls, traverses and winds finished filament onto 0.5 kg / 1 kg spools. |
| Pelletizer | Pelletize | Chops filament into uniform pellets for re-extrusion, compounding or injection molding. |
Prefer a complete, pre-configured system?
Filabot bundles are priced below the sum of their parts:
- EX3 Filament Maker Bundle — EX3 + Airpath + Spooler + Filameasure (with Filalogger)
- EX6 Filament Maker Bundle — EX6 Standard + Airpath + Spooler + Filameasure (with Filalogger)
- EX6 Industrial Filament Maker Bundle — EX6 Industrial + Airpath + Spooler + Filameasure (with Filalogger)
- EX3 Full Recycling Bundle — Reclaimer + EX3 + Airpath + Spooler + Pelletizer
- EX6 Standard Full Recycling Bundle — Reclaimer + EX6 Standard + Airpath + Spooler + Pelletizer
- EX6 Industrial Full Recycling Bundle — Reclaimer + EX6 Industrial + Airpath + Spooler + Pelletizer

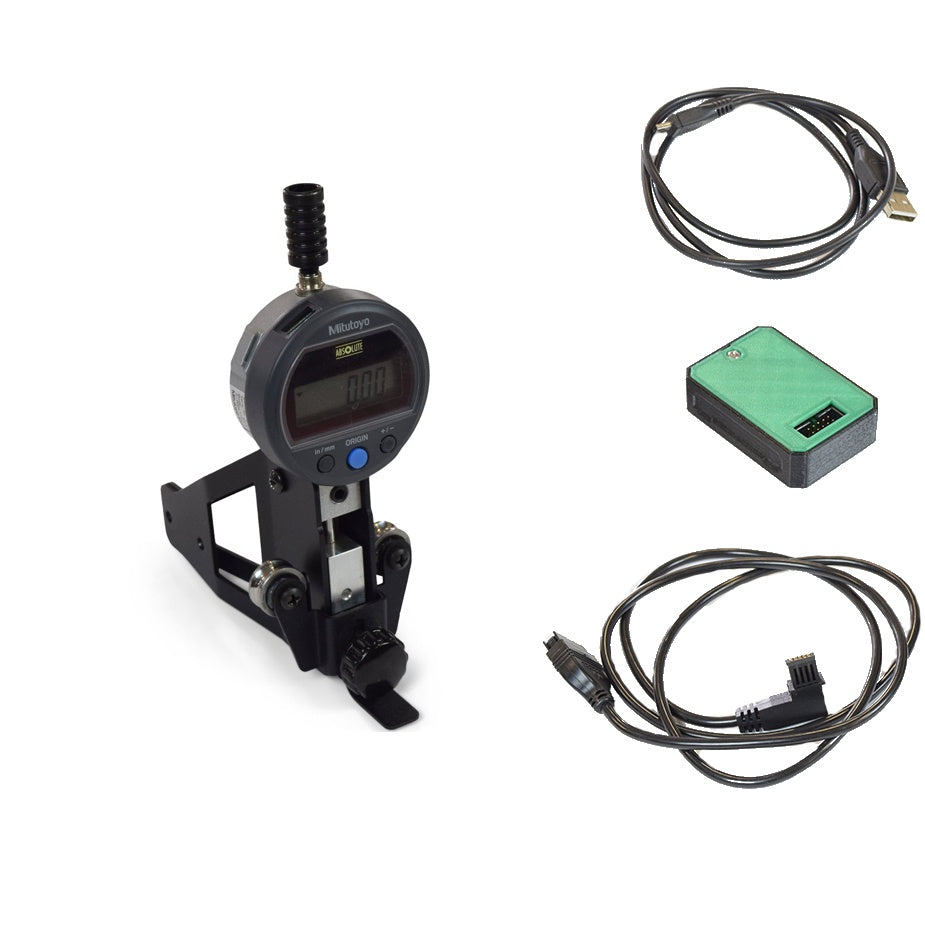

What's included
- Mitutoyo Filameasure inline gauge with Spooler mount
- Filalogger SPC unit and cables
- Filalogger software (Windows & macOS download)
- User manuals
Laptop/tablet not included.
Specifications
| Measuring range | 0–5 mm |
| Indicator | Mitutoyo digital indicator |
| Software | Filalogger (Windows & macOS), live graphing and CSV logging |
| Dimensions | 5.07 in L × 2.42 in W × 6.69 in H |
| Weight | 13 oz |
| Mounting | Filabot Spooler or Spooler Max |
| Warranty | 1-year warranty |
| Country of origin | USA (Barre, Vermont) |
Resources
- Filabot Filameasure Datasheet (PDF)
- Filabot Selection Guide 2026 (PDF) — choosing between the EX3, EX6 Standard and EX6 Industrial
About Filabot
Filabot is a Vermont-based engineering and R&D company that has built filament-making and small-scale polymer-processing systems since 2011. Thousands of systems are in use worldwide, and Filabot equipment has been referenced in more than 1,300 published research articles. Filabot provides direct technical support, installation and material-processing guidance, a processing-settings database, and curriculum resources for educators.
NOTE: 3D Universe is authorized to sell this product in the USA only. Filabot equipment ships from the manufacturer; the Reclaimer and Full Recycling Bundles ship via freight.
