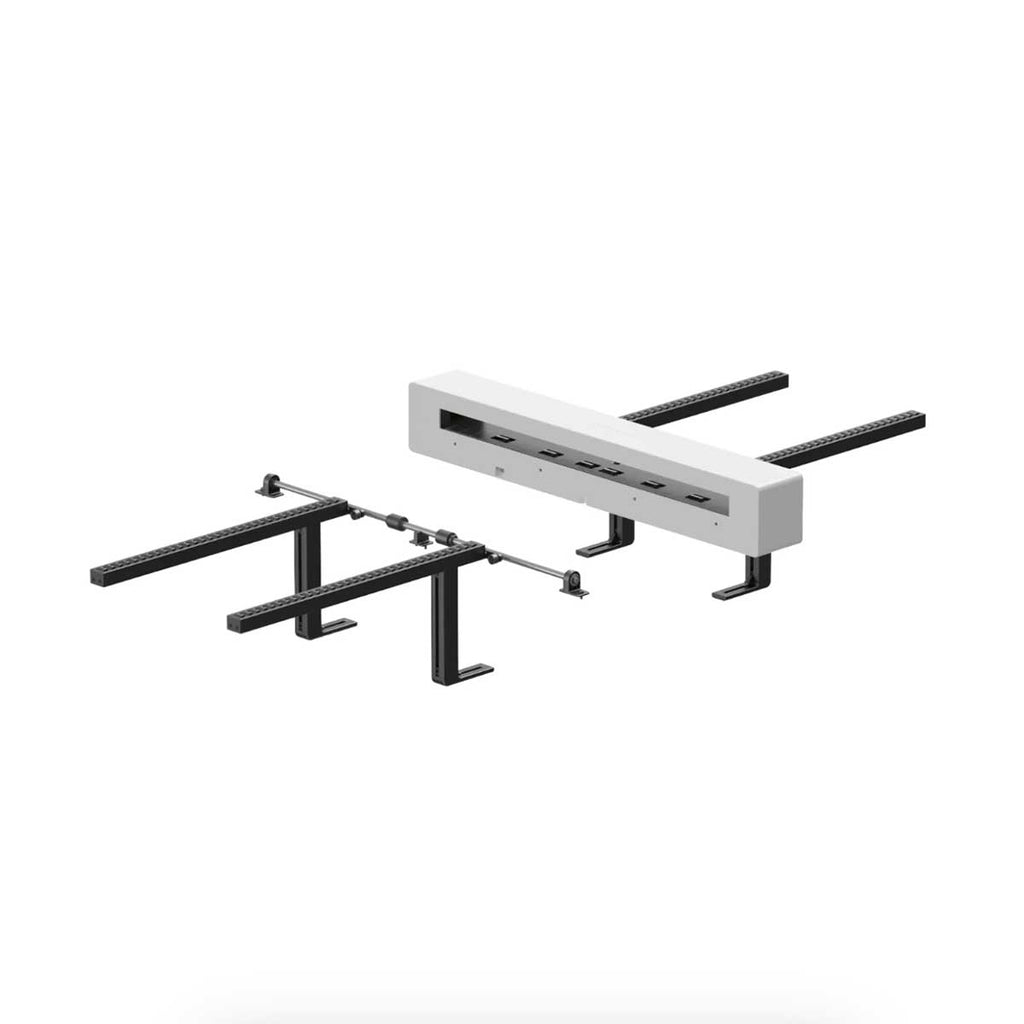

Intelligent Conveyor Feeder for xTool P3
World's First Integrated Intelligent Conveyor Feeder
Handle Giant Creation or Countless Batch Items
Large-Scale Creation is Now Automated
Creating large-scale signage and furniture is now incredibly efficient. The intelligent feeder eliminates tedious manual setup and guesswork. It provides a seamless preview for accurate alignment and features auto-clamping, auto-homing and auto-processing.
- Auto Homing & Processing
- Auto Clamp Material
- AI Seamless Tiling Preview
Effortless Production in 4 Simple Steps
Go 85% Thicker, 25% Faster, Infinitely Longer
Process Thicker, Create Stronger
The P3 feeder dramatically increases supported material thickness for both hard and soft boards, perfect for creating more substantial and durable projects.
Process Thicker, Create Stronger
Unlock a massive 111% larger processing area with the P3 feeder's standard kit. This is achieved through a combination of revolutionary 3-axis (X+Y+U) control and a wider, zero-edge-waste design, giving you more than double the creative space of the xTool P2S.
Clever Integration, More Convenient and Safer
Install Conveyor Feeder Once,
Always Ready
After a one-time installation on the back of your P3, it never obstructs the original work area. No more setup and teardown—always ready for use
Suspended Rail, No Extra Table Needed
The suspended rail design processes 1500mm materials without extra table support, satisfying 80% of daily needs. This saves you money on tables and avoids the need for possible heavy machine lifting.
Rubber Strip Protection, Enhanced Safety
The rubber strips reduce laser and smoke leakage, creating a safer, healthier environment
Specifications
| Specifications | P3 Intelligent Conveyor Feeder | P2S Automatic Conveyor Feeder |
| Material Preview | Entire Material Preview | Partial Preview |
| Feed Material to the Start Position | Auto Feed | Manually Adjust the Knob to Feed Material |
| Clamp Material | Auto Clamp | Manually Adjust the Knob to Clamp Material |
| Auto Passthrough | √ | √ |
| Max. Processable Width
| 24.01" / 610mm
| 19.68" / 500mm
|
| Max. Processable Length
| Unlimited
| 112.2" / 2850mm
|
| Max. Processable Material Length (Standard Kit)
| 51.18" / 1300mm
| 29.52" / 750mm
|
| Max. Speed
| 200mm/s (160mm/s under heavy loads)
| 160mm/s
|
| Tail-end Material Waste
| 7.87" / 200mm
| 9.84" / 250mm
|
| Max. Placeable Material Width
| 24.01" / 610mm
| 24.56" / 624mm
|
| Min. Placeable Material Width
| 4" / 101.6mm
| 2.55" / 65mm
|
| Max. Placeable Wood Thickness
| 1.02" / 26mm
| Type your text here |
| Max. Placeable Acrylic Thickness
| 0.78" / 20mm
| 0.55" / 14mm
|
| Supported Materials (Hard)
| Wood, Acrylic, Fiberboard
| Wood, Acrylic, Fiberboard
|
| Supported Materials (Soft)
| Felt, EVA, Corkwood, Leather
| Felt, EVA, Corkwood, Leather
|
| Max.Material Length (Standard Kit)
| 59.05" / 1500mm
| 39.37" / 1000mm
|
| Max.Placeable Material Length (with 1 extra rail set)
| 86.61" / 2200mm
| 64.56" / 1640mm
|
| Max.Placeable Material Length (with 2 extra rail sets)
| 114.17" / 2900mm
| 90.55" / 2300mm
|
| Max.Placeable Material Length (with 3 extra rail sets)
| 141.73" / 3600mm
| 118.11" / 3000mm
|
| Integrated Design
| √
| x
|
| Suspended Rail Design
| √
| x
|
| Rubber Strip Protection Design
| √
| x
|
| Dimensions
| 29.92" x 3.94" x 4.49" / 760 x 100 x 114mm
| 27.05" x 7.87" x 5.31" / 687 x 200 x 135mm
|
| Weight
| 8.73kg
| 8.045kg
|
