Overview

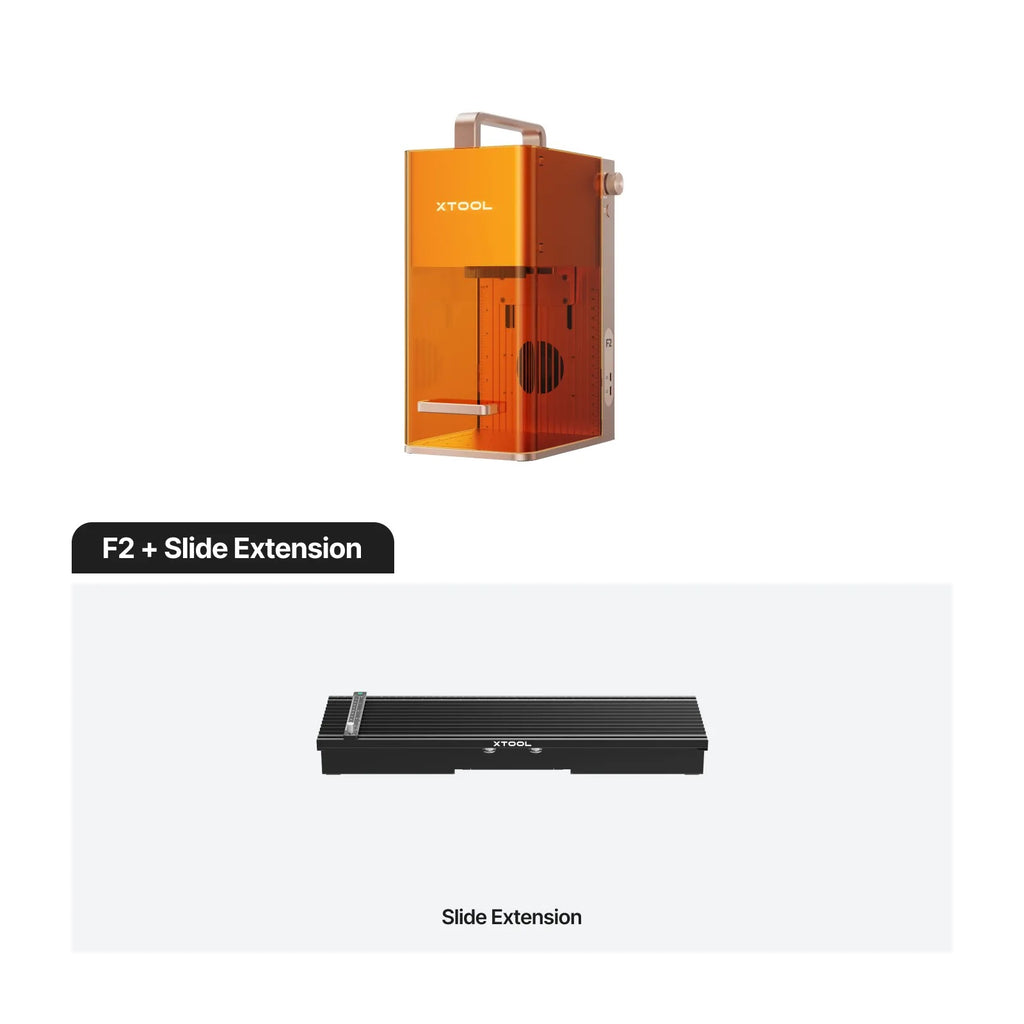

xTool F2 5W IR & 15W Diode Portable Dual Laser Engraver
Key Features
- 15W Diode & 5W IR Dual Power: Unlocks more in a portable—color engraving, 3D relief, and deep black-on-metal.
- 50MP Camera: Full workspace live preview with up to 0.1 mm alignment accuracy on small pieces.
- Portable & Safe: Compact design with eye-protection cover—ready for on-site personalization and small-batch runs.
- Fast & Precise: Up to 6,000 mm/s marking for crisp detail and shorter cycle times.
- User-Friendly: Pre-assembled, intuitive operation, with live position preview.
Package Contents
In the Box
Package Contents
Specifications
Heading
Specifications
| Information | xTool F2 | xTool F1 |
| Laser Typ | 15W Diode Laser + 5W 1064nm Infrared Laser | 10W Diode Laser + 2W 1064nm Infrared Laser |
| Processing Mode | Laser Engraving | Laser Engraving |
| Supported Materials | Laser Cuttable: Laser Engravable: | Laser Cuttable: Laser Engravable: |
| Working Area | 4.53" × 4.53"(115mm × 115mm) | 4.53" × 4.53"(115mm × 115mm) |
| Max. Working Speed | 236.22 ips (6000mm/s) | 157.48 ips (4000mm/s) |
| Max. Laser Cutting Capacity (Basswood) | 0.59" (15mm) in Multiple Pass | 0.32" (8mm) in Multiple Pass |
| Max. Laser Cutting Capacity (Acrylic) | 0.47" (12mm) in Multiple Pass | 0.24" (6mm) in Multiple Pass |
| Max. Processing Height | 4.72" (120mm) | 4.45" (113mm) |
| Max. Rotary Engraving Diameter | 4.72" (120mm) | 4.45" (113mm) |
| Supported Software | xTool Studio | xTool Creative Space / xTool Studio / Lightburn |
| Operating System | Windows / macOS | Windows / macOS |
| Connection Method | Wi-Fi / USB / IP | WiFi / USB |
| Supported Files | SVG/DXF/JPG/JPEG/PNG/BMP, etc. | SVG/DXF/JPG/JPEG/PNG/BMP, etc. |
| Almake Compatibility | Yes | Yes |
| Pre-assembled | Yes | Yes |
| Built-in Camera | 50 MP Smart Camera | - |
| Positioning Method | Framing Positioning | Framing Positioning |
| Focus Mode | Auto Focus | Manual Focus (Two dots alignment) |
| Framing Mode | Rectangle Framing | Rectangle Framing |
| Preview Method | Smart Camera Preview | High-speed Light Live Preview |
| Laser Spot Size | 15W Diode Laser: 0.00315" x 0.00236" | 10W Diode Laser: 0.00315" x0.00236" |
| Motion Accuracy | 0.000078" (0.00199 mm) | 0.000078" (0.00199 mm) |
| Max. Machine Input Power | 25V 6.0A 150W | 24V 5.0A 120W |
| Product Weight | 10.14lb (4.60kg) | 10.14 lb (4.60kg) |
| Product Dimensions | 6.89" × 9.33" × 13.15"(175mm*237mm*334mm) | 7.05" × 9.25" × 13.15"(179mm × 235mm × 334mm) |
| Safety Certification | Class 4 Laser Safety | Class 4 Laser Safety |
| Power Adapter Input Voltage | 100 V - 120 V, AC 50/60 Hz | 100 V - 120 V, AC 50/60 Hz |
