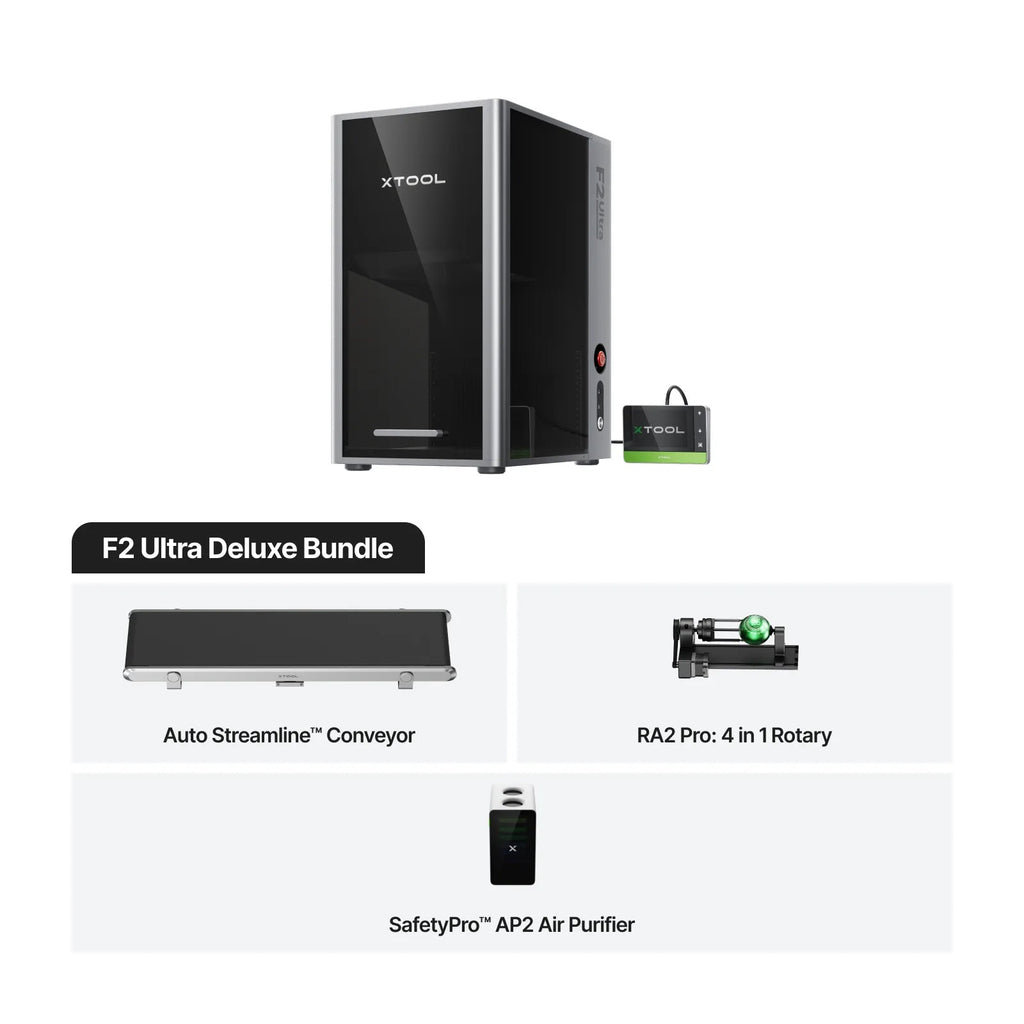

xTool F2 Ultra 60W MOPA & 40W Diode Dual Laser Engraver


xTool F2 Ultra offers more possibilities. 60W MOPA laser enables pulse and frequency control, delivering high-precision results whenever needed. 40W diode laser enables finer processing of non-metal materials and cuts thicker materials effortlessly.

Vibrant Color Marking: 60W MOPA unlocks 100+ consistent colors on metals.

48MP Dual Cameras: Precise alignment and fine detail, even on tiny items.

All-Metal Capability: Color engraving, emboss, and cut brass, stainless steel, and more.

Efficient Batch Engraving: 8.6"×8.6" area & 15,000mm/s speed for pro-level output.

Safety-Assured: Enclosed cover. Eye-protection cover. Fire safety stop.

NOTE: 3D Universe is authorized to sell this product in the United States of America, only.

Free Shipping in the US

6,499.00


Availability: In-Stock Now

xTool F2 Ultra offers more possibilities. 60W MOPA laser enables pulse and frequency control, delivering high-precision results whenever needed. 40W diode laser enables finer processing of non-metal materials and cuts thicker materials effortlessly.

xTool F2 Ultra 60W MOPA & 40W Diode Dual Laser Engraver




One Powerful Machine Does It All

Three gold name necklaces displaying
Wooden sign with the word
Three wooden cutting boards with decorative engravings and a small vase.
Two candles, one black and one white, on stone coasters with greenery.
Crystal award featuring a couple in a romantic pose, displayed on a black stand.
A glass of yellow drink on coasters with lemon slices.
Stack of black cards with QR code and text for customization.
Two beige paper bags with handles on a light background.

Color Engraving Becomes More Accurate and Easier

With our advanced 60W MOPA laser, you can achieve richer tones, finer gradients, and even holographic effects on metal. What truly sets xTool apart is our precisely calibrated structure and premium optical system—engineered to minimize variation and maximize consistency.



Colorful portrait of a man wearing a hat and a light blue jacket.

100+ Vibrant Colors, Remarkably Consistent

Delivers over 100 consistent colors on stainless steel and titanium, spanning 7 color spectrums and taking your designs far beyond black and white.



Get Your Color Palette in One Click

Pre-set color files in XCS let anyone create a personal color palette and easily find the right settings for any color. Color engraving is now easier than ever.



Diagram with circles, arrows, and a grid showing speed and power values.

Embossing Done Faster, with More Detail

60W MOPA cuts metal faster and deeper, creating crisp textures and layered reliefs that lower-power lasers can’t match. Adjustable pulse width and frequency give you precise control to reveal the finest details in every design.

A detailed golden coin featuring a lion design.

From 2D to 3D, Made for Every Masterpiece

Golden shield design with deep engraving and floral motif.
Gold emblem with fleur-de-lis design on a black background.
Four decorative tokens featuring various designs and materials.

Effortlessly Cutting Through Thicker Materials

20mm Acrylic
The 40W diode laser cuts acrylic up to 20mm thick through multiple passes, delivering clean edges.

2mm Metal
The 60W MOPA laser enables cutting metals up to 5 times thicker than a 20W fiber laser.

23mm Wood
The 40W diode laser cuts wood up to 23mm thick through multiple passes,delivering deeper cuts with less burning.


AI Simplifies Laser to the Max


AI Drives the Entire Process with One Click

From material detection to settings and preview, it simplifies every step for you.


Dual AI Cameras with Hawk-Eye Vision, Boosting Precision by 60%

Two 48MP cameras in F2 Ultra boost accuracy to 0.2mm—60% improvement over single-camera systems.


AI Powers Every Step You Take

AI Color Recognition

Upload an image, and AI will automatically segment the colors, allowing you to quickly set parameters for each one.

AI Design

AI image generation helps transform your words in 70+ styles within minutes, making every project truly unique.

AI Modeling

Smart 3D modeling lets you engrave objects of any shape or size easily and accurately.




The Ultimate ROI Machine


Faster, Create More in Less Time


Larger, Unlock Bigger Project Possibilities

Up to 220 × 220 mm work area, ideal for one-off projects and detailed pieces.

With the conveyor, the bed size expands to 220 × 500 mm, perfect for handling urgent bulk orders on your own.


Smarter, Batch Process for Industrial-Grade Output

From layout to batch positioning, F2 Ultra streamlines your workflow with smart fill — so you're always ready for bulk orders.


Always Safe and Easy to Maintenance

Pre-Assembled
Ensure reliable performance, without setup errors.

Detachable Fan
Easily remove the fan with one click for tool-free maintenance.


Leading Software Makes Creation a Breeze

Red logo with a design overlaid on a background of photos, featuring

20,000+ Projects, Always Ready and Fresh
Get inspired by DesignFind and never run out of ideas!



Get Ready-to-Make Designs in Seconds
1 sentence to generate design, 0 experience required.



The Strongest yet Easiest Laser Software
Makes your work simpler and more efficient.

Say Goodbye to Material Tests & Waste
One-Click setting for 500+ materials.

In the Box


Specifications

F2 Ultra F1. Ultra
A green 3D printer with a control unit on the side.

Laser Type

  • F2 Ultra: 40W Diode + 60W MOPA Laser
  • F2 Ultra(single): 60W MOPA Laser



Laser Type

  • 20W Diode Laser + 20W Fiber Laser



Processing Mode

  • Laser Engraving
  • Laser Cutting

Processing Mode

  • Laser Engraving
  • Laser Cutting

Supported Materials

  • Laser Cuttable:
    • Diode Laser: Paper, Wood, Leather, MDF, Felt, Some Dark Opaque Acrylic
    • Mopa Laser: Brass, Stainless Steel, Aluminum
  • Laser Engravable:
    • Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some Dark Opaque Acrylic, Bamboo, Fabric, Dark Glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated Metal, Painted Metal
    • Mopa Laser: Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold



Supported Materials

  • Laser Cuttable:
    • Diode Laser: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic
    • Mopa Laser: Brass, Stainless Steel, Aluminum
  • Laser Engravable:
    • Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some Dark Opaque Acrylic, Bamboo, Fabric, Dark Glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated Metal, Painted Metal
    • Fiber Laser: Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold



Working Area

  • 8.6" × 8.6" (220 mm × 220 mm)
  • 8.6" × 19.6" (with conveyor) (220 mm × 500 mm)

Working Area

  • 8.6" × 8.6" (220 mm × 220 mm)
  • 8.6" × 19.6" (with conveyor) (220 mm × 500 mm)

Max. Working Speed

  • 590.55 ips (15,000 mm/s)

Max. Working Speed

  • 393.70 ips (10,000 mm/s)
Max. Laser Cutting Capacity (Basswood)

  • 0.91" (23mm) in Multiple Passes
Max. Laser Cutting Capacity (Basswood)

  • 0.59" (15mm) in Multiple Passes

Max. Laser Cutting Capacity (Acrylic)

  • 0.79" (20mm) in Multiple Passes

Max. Laser Cutting Capacity (Acrylic)

  • 0.47" (12mm) in Multiple Passes
Max. Processing Height

  • 150mm
Max. Processing Height

  • 145mm

Max. Rotary Engraving Diameter

  • 150mm

Max. Rotary Engraving Diameter

  • 145mm

Supported Software

  • xTool Creative Space/Atomm

Supported Software

  • xTool Creative Space/Atomm/Lightburn

Operating System

  • Windows/macOS

Operating System

  • Android/iOS/Windows/macOS

Connection Method

  • USB/Wi-Fi/IP

Connection Method

  • USB/Wi-Fi/IP/Hotspot
Supported Files

  • SVG/DXF/JPG/JPEG/PNG/BMP/TIF
Supported Files

  • SVG/DXF/JPG/JPEG/PNG/BMP/TIF



AImake Compatibility

  • Yes
AImake Compatibility

  • Yes
Pre-assembled

  • Yes
Pre-assembled

  • Yes
Built-in Camera

  • 48 MP Dual Cameras
Built-in Camera

  • 16 MP Smart Camera
Positioning Method

  • Camera Positioning
Positioning Method

  • Camera Positioning
Focus Mode

  • Autofocus
Focus Mode

  • Autofocus
Ranging System

  • N/A
Ranging System

  • N/A
Preview Method

  • Smart Camera Preview
Preview Method

  • Smart Camera Preview
Laser Spot Size

  • 0.09*0.1mm (40W Diode Laser)
  • 0.03*0.03mm (60W MOPA Laser)

Laser Spot Size

  • 0.08*0.1mm (20W Diode Laser)
  • 0.03*0.03mm (20W Fiber Laser)
Positioning Precision

  • 0.2 mm
Positioning Precision

  • N/A
Ranging Precision

  • 0.2 mm, Camera
Ranging Precision

  • 0.5 mm, Camera
Image Resolution

  • N/A
Image Resolution

  • N/A
Motion Accuracy

  • 0.00482 mm
Motion Accuracy

  • 0.00482 mm
Safety Certification

  • Class 4 Laser Safety
Safety Certification

  • Class 4 Laser Safety
Product Size

  • 11.57'' × 16.88'' × 20.51'' (294 mm x 429 mm x 521 mm)
Product Size

  • 10.75" x 14.69" x 19.37" (273 mm × 373 mm × 492 mm)
Product Weight

  • F2 Ultra: 47lb (21.6kg)
  • F2 Ultra(single): 45lb (20.8kg)

Product Weight

  • 32.4 lb (14.7kg)

Max. Machine Input Power

  • 400W
Max. Machine Input Power

  • 250 W - 275 W
Power Adapter Input Voltage

  • 100 V - 240 V, AC 50/60 Hz
Power Adapter Input Voltage

  • 100 V - 240 V, AC 50/60 Hz

What's the difference between F2 Ultra, F2 Ultra (Single), and F1 Ultra?

F2 Ultra:

Equipped with both a 60W MOPA fiber laser and a 40W diode laser. Best for users who want maximum versatility in materials and processes. Supports color marking on metals, deep engraving, cutting, and processing on non-metal materials.

F2 Ultra(single):

Equipped with only the 60W MOPA fiber laser. Better for users who mainly work with metal materials.

F1 Ultra uses a Q-switched fiber laser, equipped with both a 20W fiber laser and a 20W diode laser, a single camera, speeds up to 10,000 mm/s. Best for standard metal marking and entry-level needs.



What’s the max engraving depth or cutting thickness for metals?

The F2 Ultra can cut brass up to 2mm, stainless steel up to 2mm, aluminum up to 1mm. Engraving depth depends on the material and settings, but the 60W MOPA fiber laser ensures deep and precise results across a wide range of metals.



What materials can be engraved with F2 Ultra?

F2 Ultra can engrave almost all materials. Metals like gold, silver, aluminum, stainless steel (with multiple colors), platinum, titanium (with multiple colors), and others. Non-metals like wood, acrylic, plastic, slate, glass, paper, cardboard, and others.



What is the warranty of this machine?

F2 Ultra comes with a 12 months warranty.



How large is the working area provided by xTool F2 Ultra?

The working area is 8.6 × 8.6 inches (220 × 220 mm) and 8.6 ×19.6 inches (220×500 mm) with the conveyor.



Will U.S. Tariff changes affect the price of the F2 Ultra?

U.S. Tariff policies are subject to change, which may cause some uncertainty.

If you’ve placed a deposit, your final price is locked in and will not be affected by any future tariff adjustments.

If you haven’t placed a deposit, there’s still no price change at this time — but if we ever need to adjust due to tariffs in the future, we’ll notify you in advance before making any adjustments.
