Built for the factory floor
Downtime is not an option in continuous production. The Factor 4+ pairs a redesigned, field-proven H-bridge gantry with a direct-drive dual-extrusion print head, a triple-insulated and actively temperature-controlled build chamber, and an automated material handling system. The result is consistent output even on complex, challenging geometries, job after job.
Core benefits
- Maximum throughput, zero compromise — up to 2× faster than the original Factor 4, driven by the Cheetah motion planner and the new high-flow AA+ and CC+ print cores.
- Built for 24/7 industrial cycles — a newly redesigned gantry absorbs vibration at high print speeds and was lifetime-tested for 15,000 hours of operation.
- Part-level confidence with UltiMaker TRACE — continuous logging and analysis for traceable, compliance-ready output.
- High-flow extrusion — push advanced polymers and composites through the system faster than ever, with flow up to 34 mm³/s.
UltiMaker TRACE — Technical Reporting And Certification Engine
TRACE goes beyond basic print monitoring to deliver the traceability that rigorous industrial compliance demands. Throughout every print job it continuously logs and analyzes four key parameters — extrusion factor, nozzle temperature, chamber temperature, and build plate temperature — so minor thermal or volumetric deviations that could affect part quality, layer adhesion, or mechanical performance are detected in real time.
High quality, every time, anywhere
A fully isolated, thermally controlled print chamber maintains a constant thermal gradient across the entire build envelope. By managing ambient temperature precisely, the Factor 4+ minimizes internal stress and thermal shock as each new layer is deposited — for accurate, reliable parts wherever the printer is installed.
- Actively controlled build-volume temperature up to 70 °C
- Heated flexible PEI build plate up to 120 °C
- Print cores reaching up to 340 °C for high-temperature materials
Engineered for production
- Integrated HEPA H13 filter — independently tested to remove up to 95% of ultrafine particles for cleaner air and better print quality inside the fully enclosed chamber.
- Automated material handling — automatic pre-loading and spool switching across up to 6 bays, with the storage chamber held below 15% relative humidity in any external conditions.
- Emergency stop — a prominent red STOP button immediately halts motion and heat sources when needed.
- Improved, lifetime-tested gantry — validated through 15,000 hours of rigorous testing for maximum field uptime.
- 7-inch capacitive touchscreen — mounted higher for a better view of the first layers, with high-resolution remote monitoring via UltiMaker Digital Factory.
- Dual onboard processors — ample computing headroom for current workflows and future updates.
Repeatable results across a wide range of materials

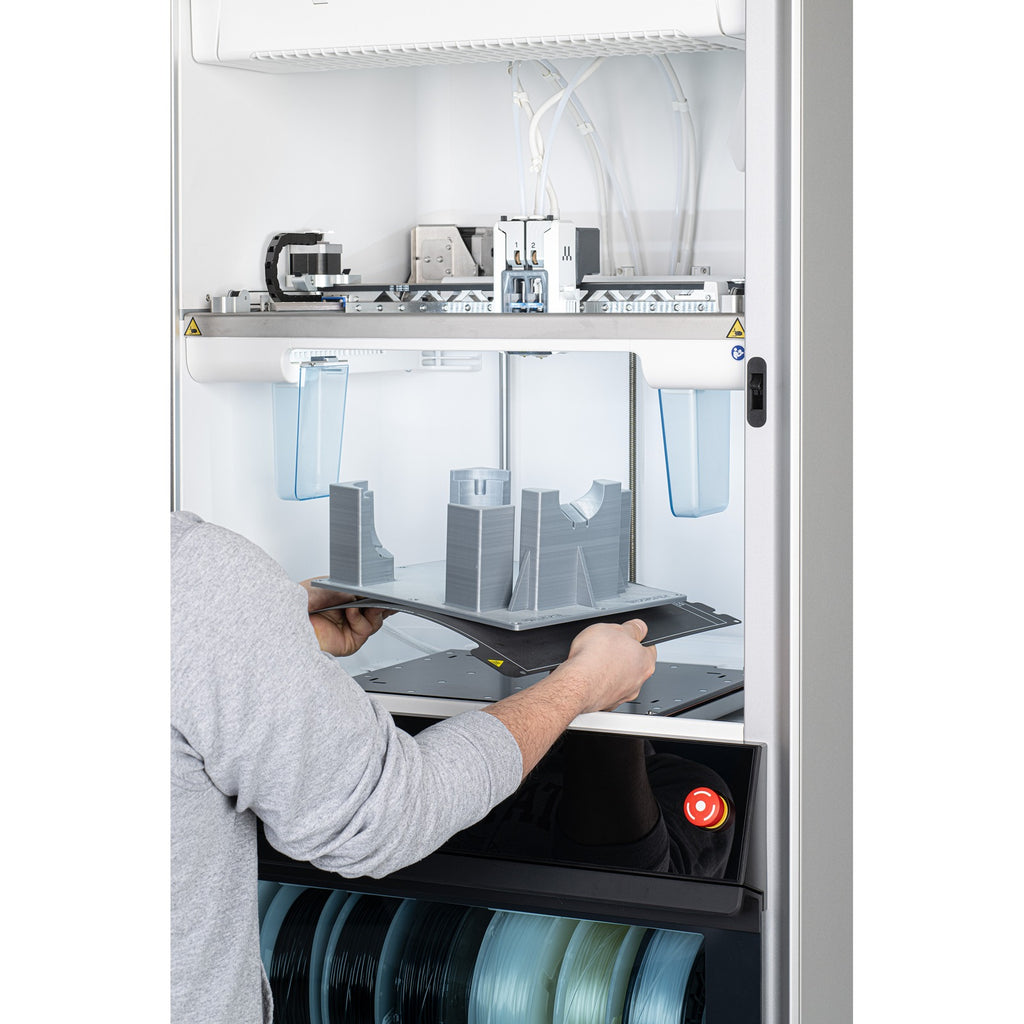

Edge-to-edge dual extrusion across the flexible PEI build plate, fast parts removal, and verified dimensional accuracy combine to deliver dependable production output. The Factor 4+ ships with new high-flow AA+ (0.4 mm) and CC+ (0.6 mm) print cores and remains compatible with the full family of UltiMaker swappable print cores.
- Easy to print: UltiMaker PLA, Tough PLA, PETG
- Mechanical strength: UltiMaker ABS, PC, Nylon
- Flexibles: UltiMaker TPU 95A, Tectonic-3D ANASA TPC 95A & L80A
- Reinforced composites: UltiMaker Nylon CF Slide, PET CF, PPS CF, Tectonic-3D Zephyr PA11 CF MC
- Heat resistance: UltiMaker CPE+, Tectonic-3D Vulcan PEKK-A, Tectonic-3D Kratir PA6/66 CF
Seamless software integration
UltiMaker Cura and Digital Factory work together with the Factor 4+ and UltiMaker materials to provide an easy, secure, reliable workflow — from 3D model to finished part.
- UltiMaker Cura — powerful slicing with 400+ settings, application intent profiles, material interlocking, and sequential printing for small-batch production.
- UltiMaker Digital Factory — secure printer management, shared workspaces, file storage, live HD camera feeds, and analytics with CSV export.
- Onboard print process reporting — in-depth validation of part quality and structural integrity after every job.
Service and modularity
The Factor 4+ was designed to be modular, so a serviceable part can be swapped quickly to minimize production downtime. Under UltiMaker Care service plans, expert technicians and a global network of service providers help keep the printer running with high uptime.
Available print core options
| Type | Nozzle sizes | Max temp | Materials |
|---|---|---|---|
| AA+ (included) | 0.4 mm | 280 °C | High-flow PLA, Tough PLA, PETG, ABS, PC, Nylon |
| CC+ (included) | 0.6 mm | 340 °C | High-temp composites, PPS CF, PEKK-A |
| AA | 0.25, 0.4, 0.8 mm | 280 °C | Up to Polyamides 6, TPU, PC, ABS, PETG |
| BB | 0.4, 0.8 mm | 280 °C | PVA and other water-soluble materials |
| CC | 0.4, 0.6 mm | 300 °C | Composites, metal |
| DD | 0.4 mm | 280 °C | Ultrafuse support layer, ceramics (select regions) |
| HT | 0.6 mm | 340 °C | High-temp composites, PPS CF, PEKK-A |
AA, BB, CC, DD, and HT print cores are sold separately.
What's included
- UltiMaker Factor 4+ 3D Printer
- AA+ Print Core — 0.4 mm
- CC+ Print Core — 0.6 mm
- Spool of Tough PLA Filament
- Power Cord
- Tools and Wire Cutter
- USB Stick
- Safety and Warranty Info
- Quick Start Guide
Specifications
Print properties
Technology: Fused Deposition Modeling (FDM)
Print head: Dual-extrusion, direct-drive print head with swappable print cores
Print-core replacement: UltiMaker quick-swap print cores
Build volume (XYZ): 330 x 240 x 300 mm (~13 x 9.4 x 11.8 in)
Layer resolution: 60–400 µm (depending on print core nozzle size and print profile)
Positioning resolution (XYZE): 6.25, 7.8, 2.5 microns
Extrusion flow: up to 34 mm³/s
Filament diameter: 2.85 mm
Input shaping: Resonance frequency compensation for X, Y, and Z motion
Speed & motion
XY speed: up to 125 mm/s
XY acceleration: up to 30,000 mm/s²
Temperature
Build plate: Heated flexible PEI build plate up to 120 °C (248 °F)
Build-volume temperature: Actively controlled up to 70 °C for a consistent nozzle-plane temperature
Nozzle temperature: up to 340 °C (644 °F)
Compatible nozzle diameters
Included: AA+ 0.4 mm, CC+ 0.6 mm
Sold separately: AA 0.25 / 0.4 / 0.8 mm, BB 0.4 / 0.8 mm, CC 0.4 / 0.6 mm, DD 0.4 mm, HT 0.6 mm
Air, material handling & monitoring
Air manager: Removes up to 95% of UFPs; replaceable HEPA H13 filter
Material handling: NFC recognition with integrated automated material handling
Material humidity control: Storage chamber held below 15% relative humidity
Monitoring: Full HD HDR camera
Connectivity
Connectivity: Wi-Fi (2.4 GHz + 5 GHz), LAN, USB port
Physical
Dimensions (with spool holder): W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 in)
Net weight: 120 kg (265 lbs)
Specifications subject to change.
