Go up to 3 meters long

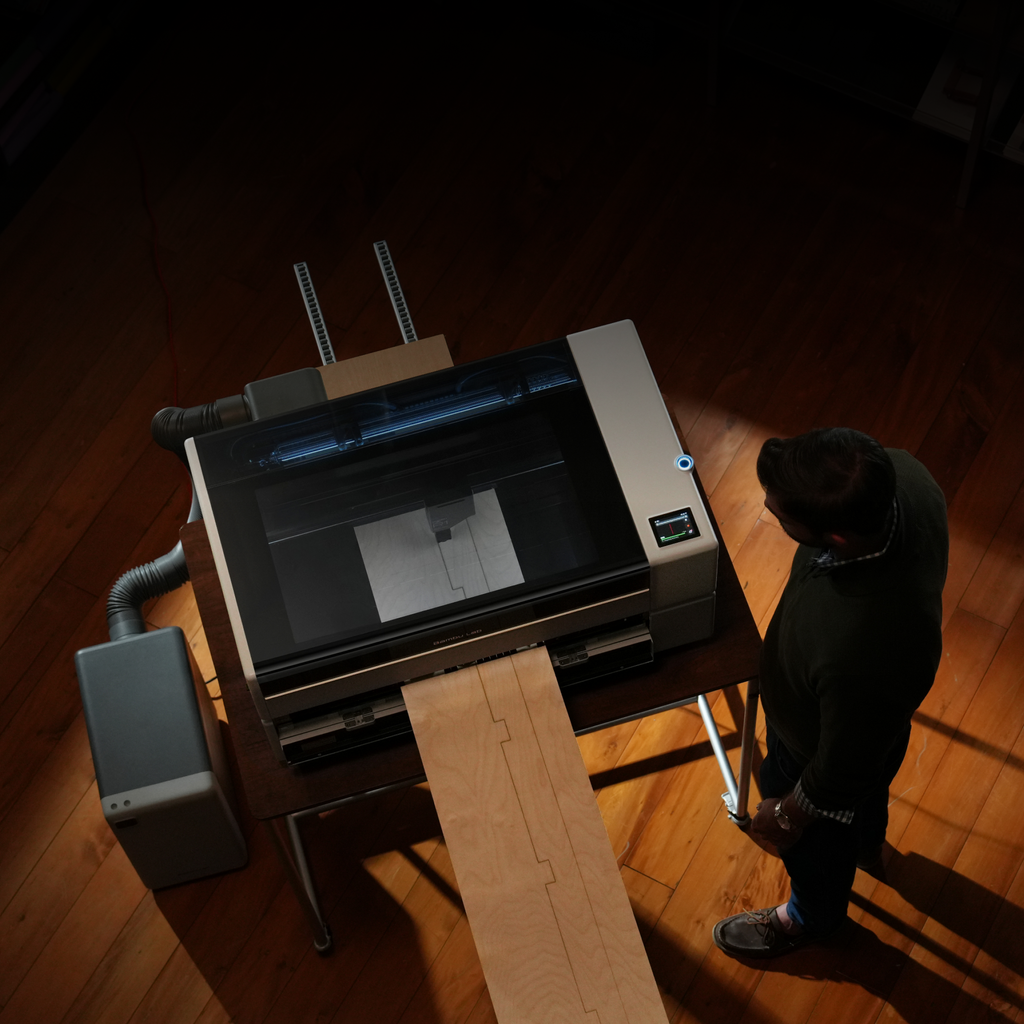

The Conveyor automatically feeds long materials through R1 during processing, extending the processing length up to 3,000 mm for signs, panels, furniture parts and other large-format projects.
Easy to install and remove
The Conveyor is quick to install and easy to remove, making it simple to switch between long-material and regular-size projects. Requires the R1 Riser Base for installation and use.
Specifications
| Applicable to | Bambu Lab R1 (with Riser Base) |
|---|---|
| Dimensions | 117 × 1234 × 756 mm |
| Package dimensions | 867 × 388 × 246 mm |
| Net weight | Approx. 9.2 kg |
| Max. workpiece length | Guide rail only: 450–1500 mm · +1 extension: up to 2000 mm · +2 extensions: up to 2500 mm · +3 extensions: up to 3000 mm |
| Max. processing speed | Laser Fill / Laser Image: 1000 mm/s · Laser Line / Laser Cut: 200 mm/s |
| Power | Powered via 6-pin Bambu Bus cable from the R1 Riser Base |
Material length depends on how many guide-rail extensions are used (max. 3 sets recommended). Material should not extend more than 200 mm beyond the total length of the rails plus the machine.
What's in the box
- Smoke Curtain Mount × 1
- Support Roller Assembly × 1
- Conveyor Roller Assembly × 1
- Guide Rail × 4
- Guide Rail Support × 4
- Bambu Bus Cable 6-pin × 1
- Sensor Light Shield × 1
- Screws (Smoke Curtain Mount × 6, Support Roller × 6, Conveyor Roller × 10, Guide Rail × 6)
- Allen Key × 1
Before use, follow Bambu Lab's Auto-Passthrough Processing Guide to install the Riser and Conveyor correctly.
Safety note: when R1 is used with the Riser Base or the Automatic Conveyor Feeder, the enclosure is no longer complete and the laser changes from an enclosed Class 1 device to a Class 4 device. CO₂ laser-safety eyewear is required and the setup is intended for professional use by trained personnel only.
