Overview
xTool Apparel Printer Plus

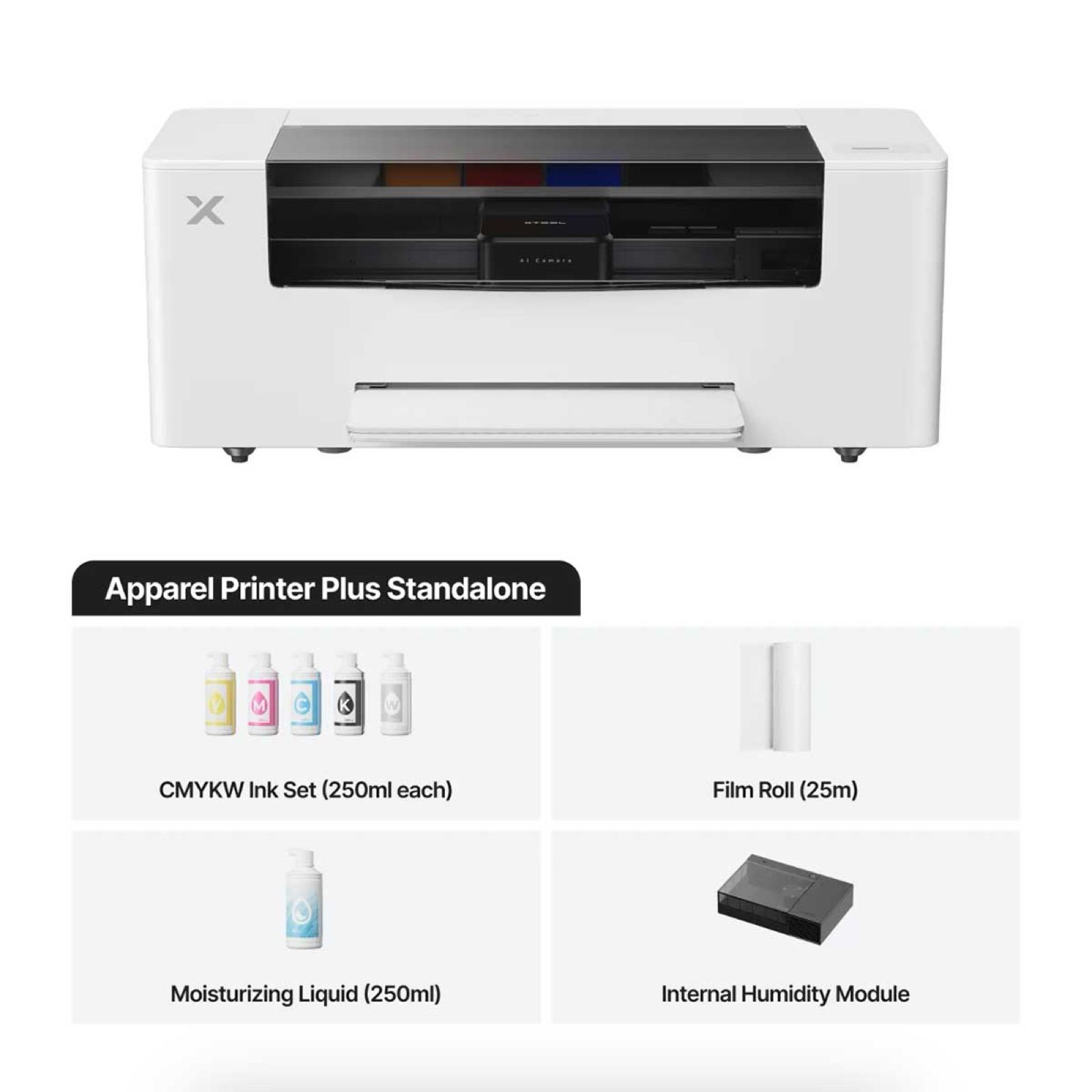

Standalone
What is included?
- Apparel Printer Plus x 1
- CMYKW Ink Set (250ml each) x 1
- Moisturizing Liquid (250ml each) x 1
- Film Roll (25m)
- Internal Humidity Module x 1

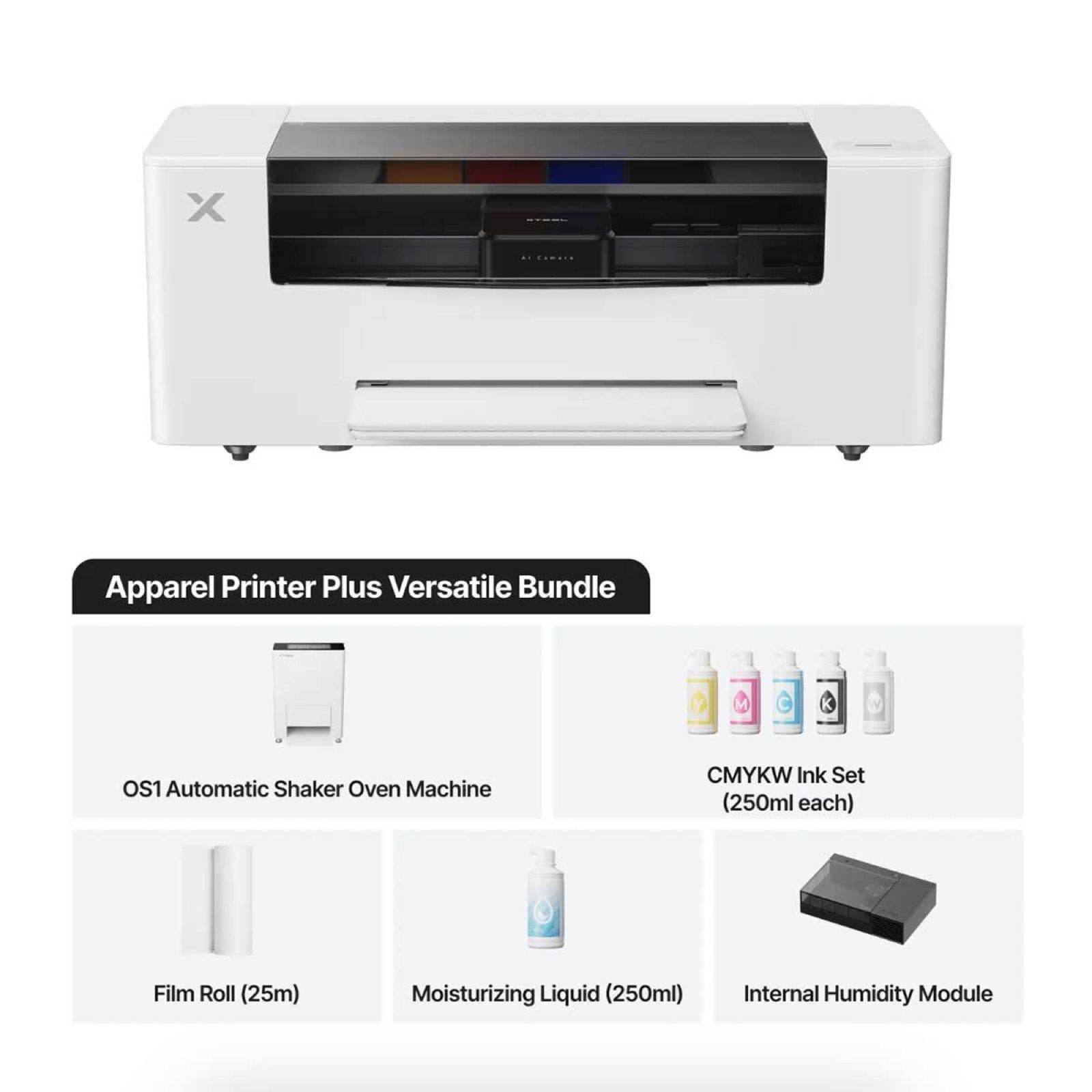

Versatile Bundle
What is included?
- Apparel Printer Plus x 1
- OS1 Automatic Shaker Oven Machine x 1
- CMYKW Ink Set (250ml each) x 1
- Moisturizing Liquid (250ml each) x 1
- Film Roll (25m)
- Internal Humidity Module x 1

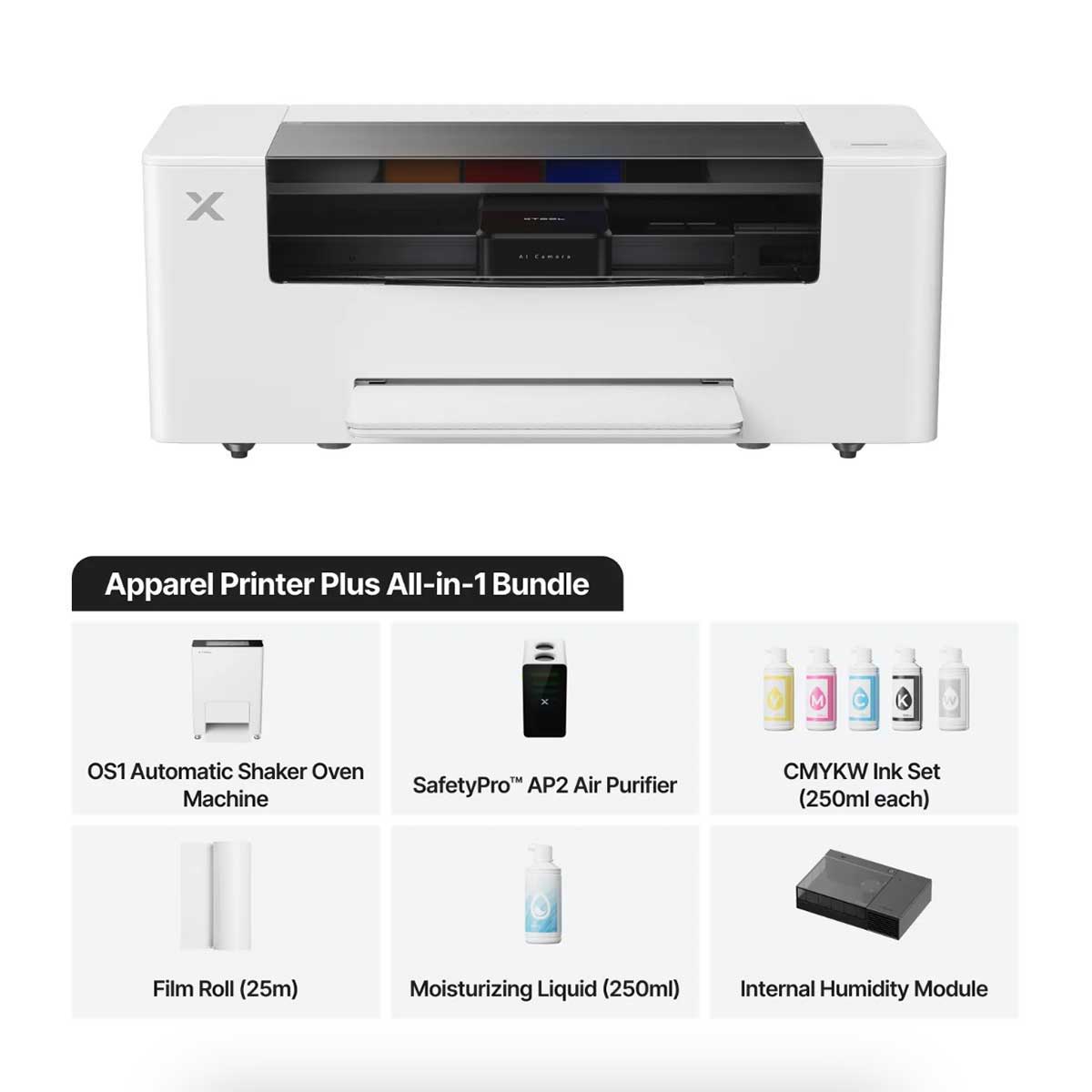

All-in-One Bundle
What is included?
- Apparel Printer Plus x 1
- OS1 Automatic Shaker Oven Machine x 1
- SafetyPro™ A2 Air Purifier x 1
- CMYKW Ink Set (250ml each) x 1
- Moisturizing Liquid (250ml each) x 1
- Film Roll (25m)
- Internal Humidity Module x 1
Key Features
Community-Proven Profit Breakdowns
Better Where It Matters. Meet Apparel Printer Plus.
Built on insights from over 197,000 hours of real-world use and community feedback, Apparel Printer Plus brings targeted hardware and software upgrades for more consistent printing with less hands-on upkeep.
- Smarter Environmental Control for Consistent Printing
- Fewer Clogs. Less Cleaning. Less Waste.
- Print Management in Your Pocket

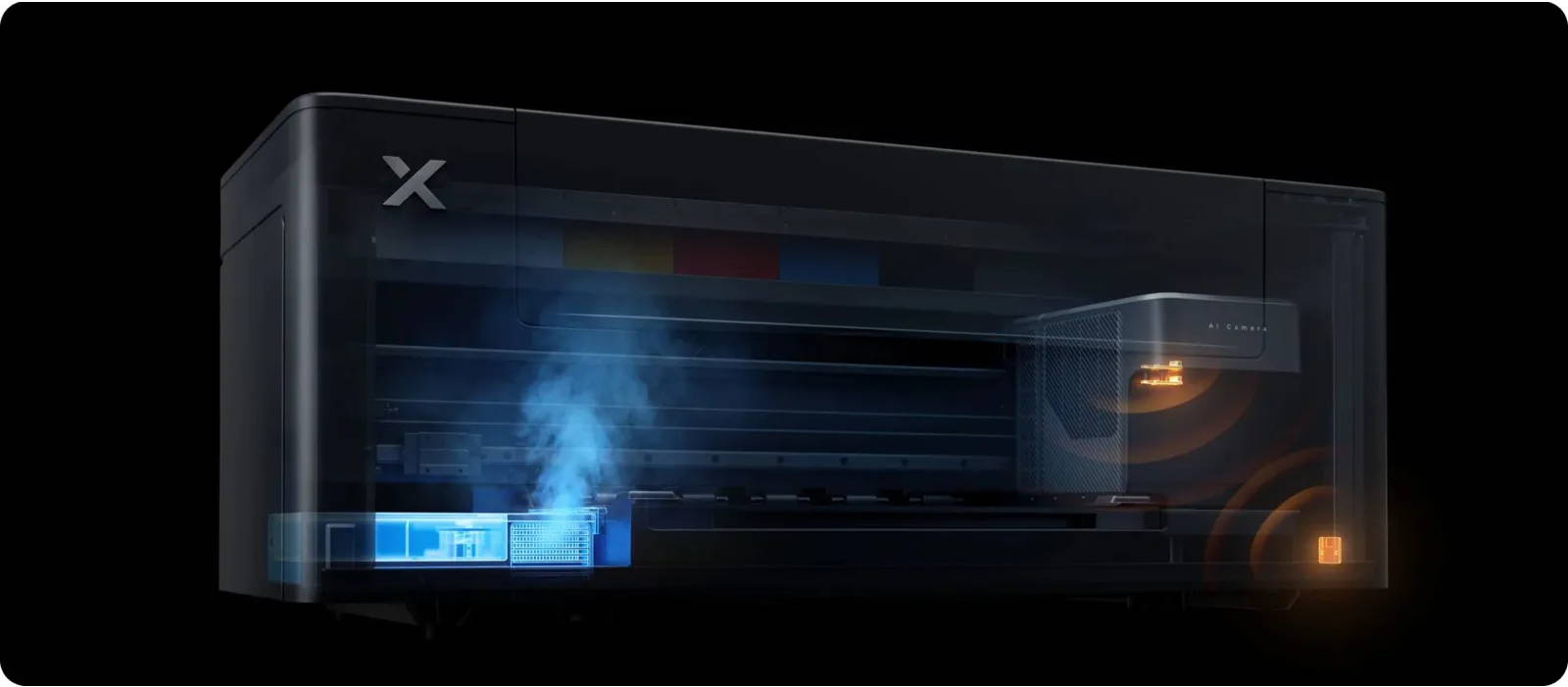

Keep Printing Longer, Even in Dry Air.
The built-in humidifier automatically turns on and off as needed to maintain an optimal humidity range of 45–65% around the printheads, helping ensure consistent print quality even in dry conditions.

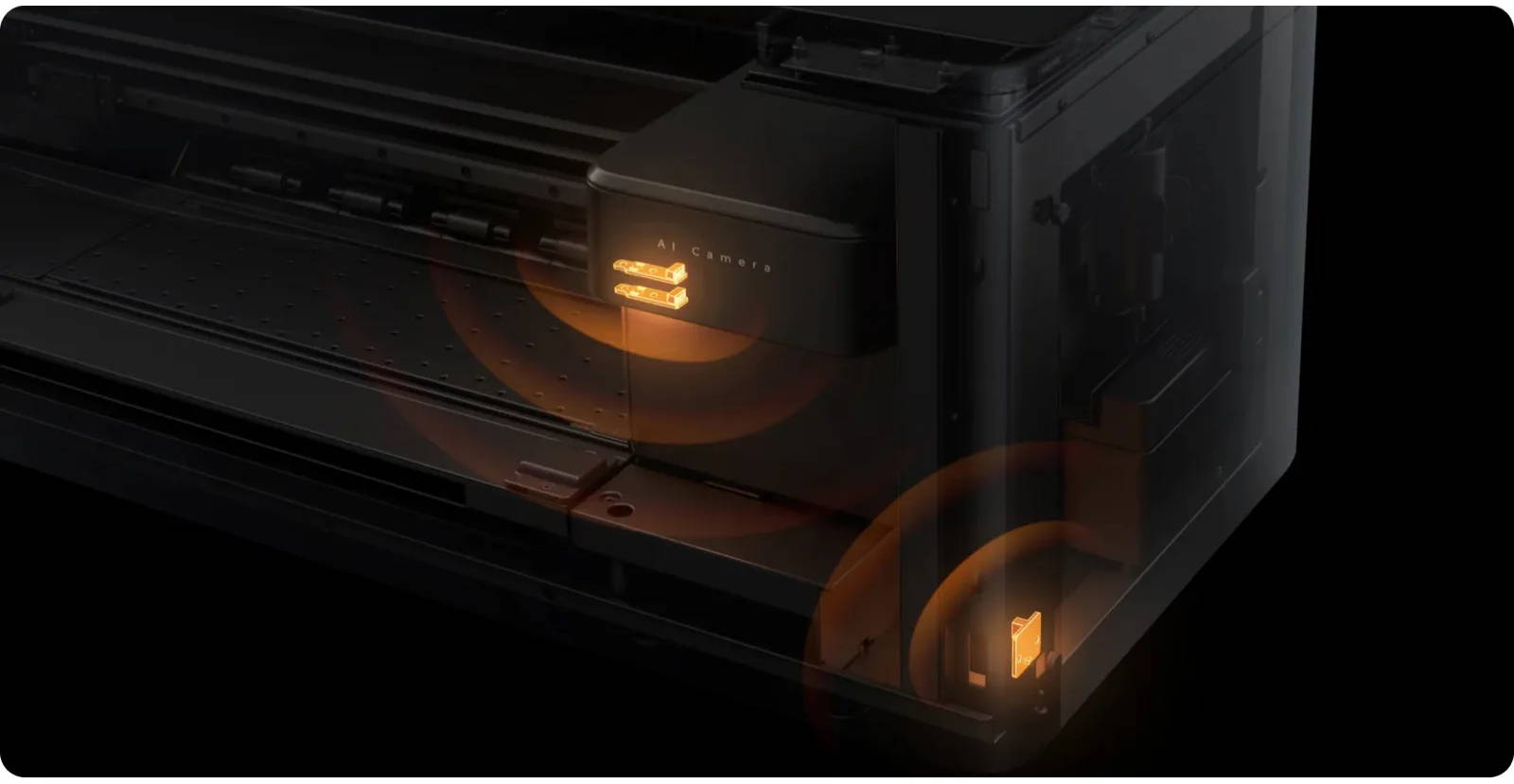

Advanced Humidity Monitoring with Dual Sensors
The upgraded dual-sensor system adds a dedicated temperature-and-humidity sensor near the printheads, detecting print-zone humidity changes in as little as 5 seconds for faster, more precise humidification control and consistent print quality.

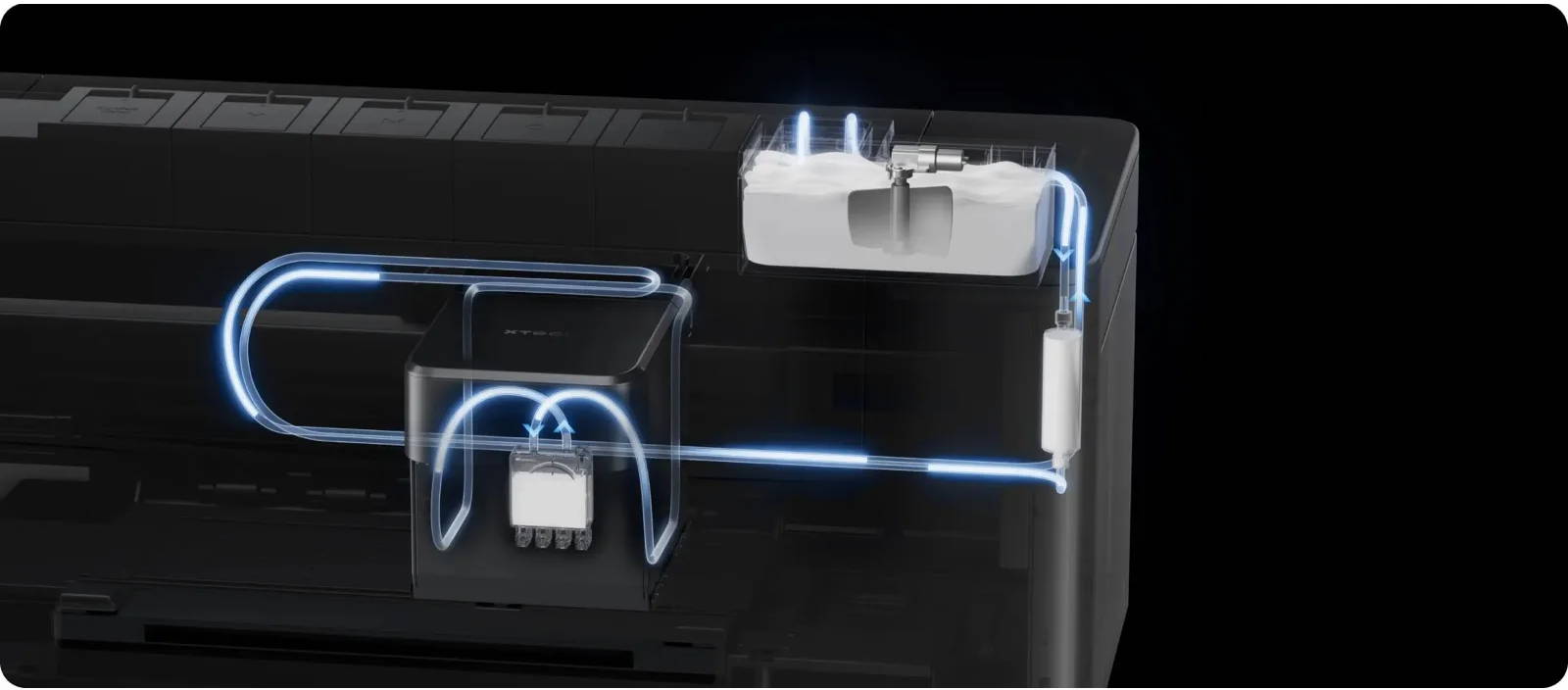

HydraFlow™ Damper for Fewer Clogs
A single damper replaces four narrow ink channels, leaving fewer places for white ink to settle and allowing more ink to circulate at once—helping reduce clogs.
Vacation-Ready Printhead Protection with Less Cleaning and Waste
Apparel Printer Plus brings advanced Automatic Wet Capping. After 24 hours of inactivity, Wet Capping Mode automatically seals the printheads and keeps the nozzles moist with a moisturizing liquid, helping prevent residual ink from drying and reducing the risk of clogging.

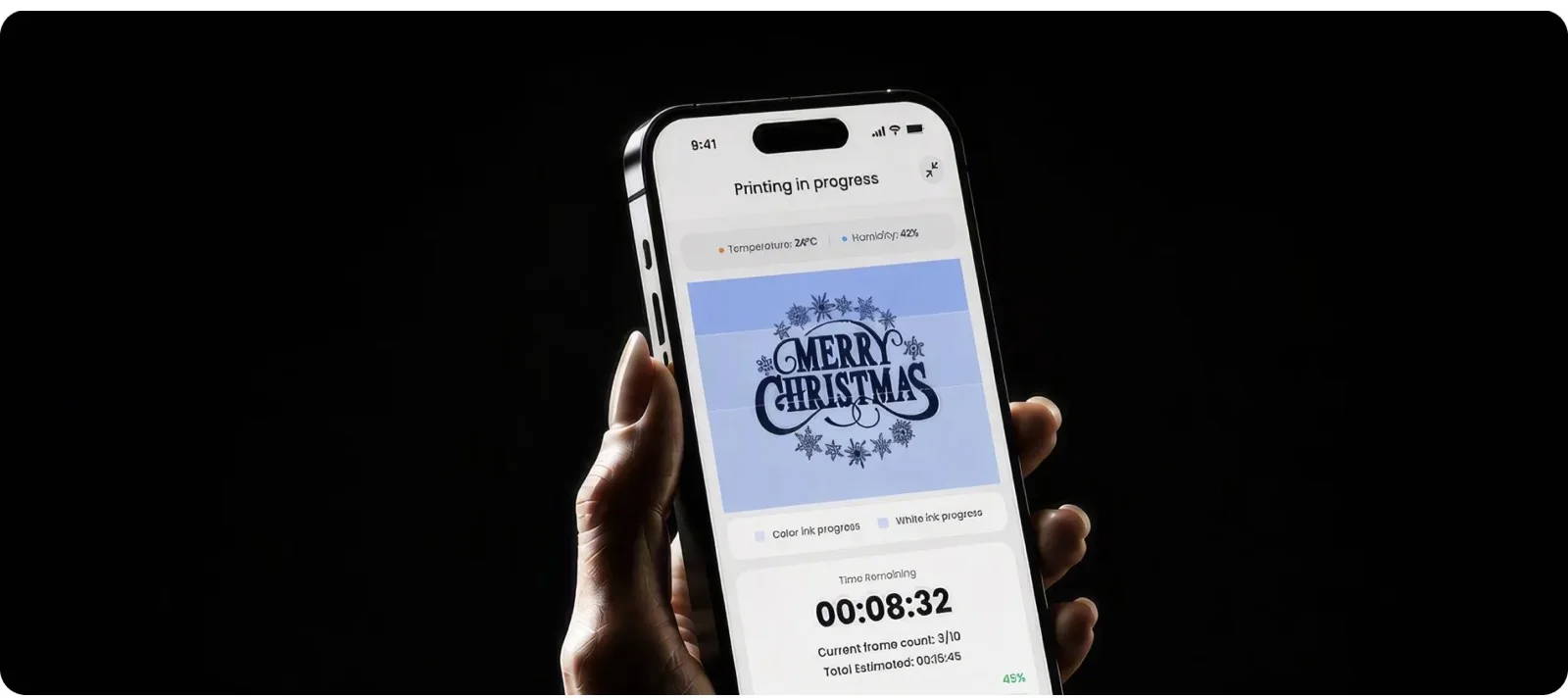

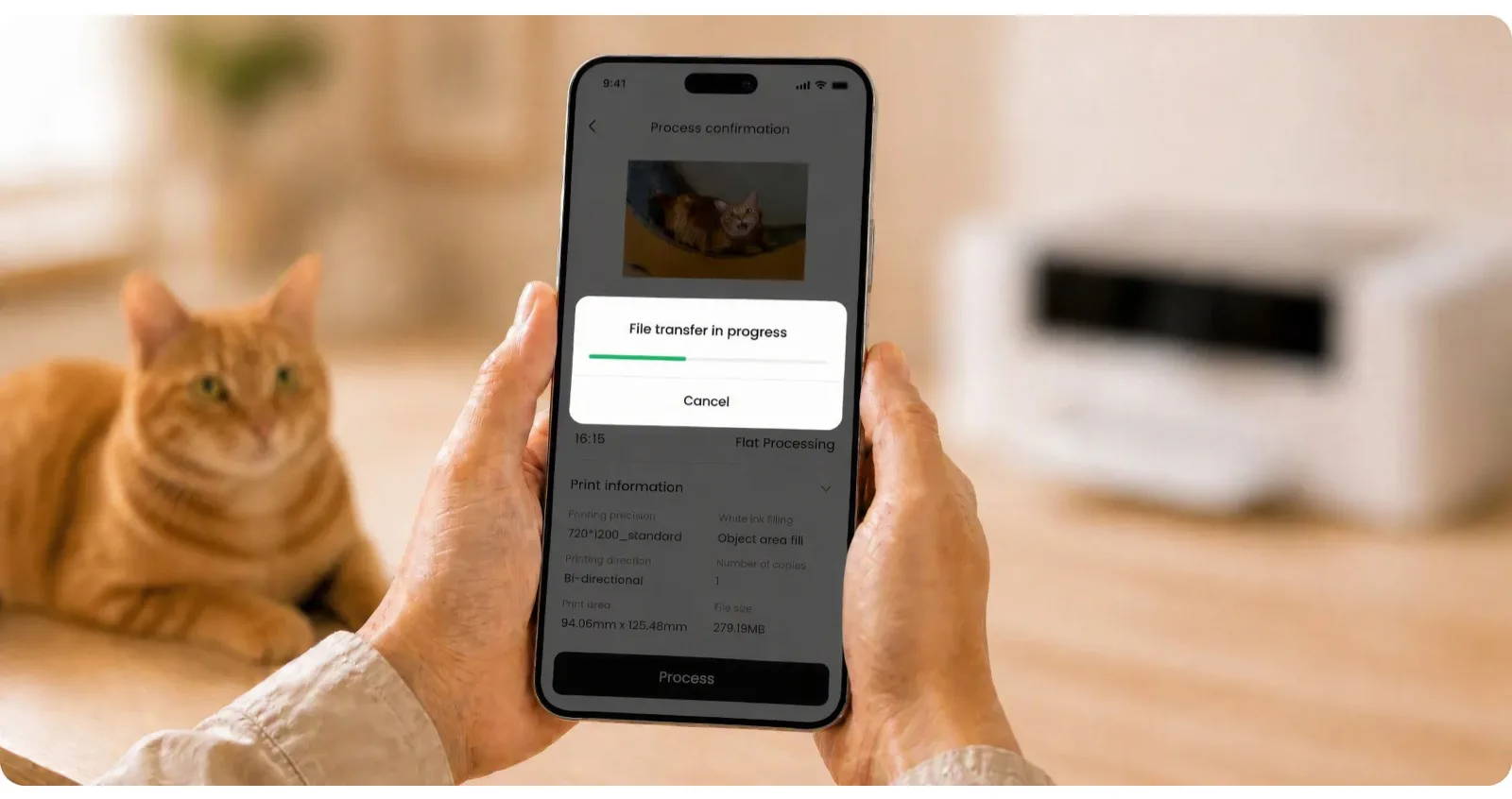

Remote Monitoring. Greater Peace of Mind.
Stay in control, even when you step away. Check print progress and printer status in the xTool Studio App, with real-time alerts when something needs your attention.
Your Mobile Print Studio. As Easy as a Tap.
Our new mobile workflow lets you snap photos at a pop-up booth, refine designs with built-in AI, and send ready-to-print transfers straight to your machine—all from your phone.

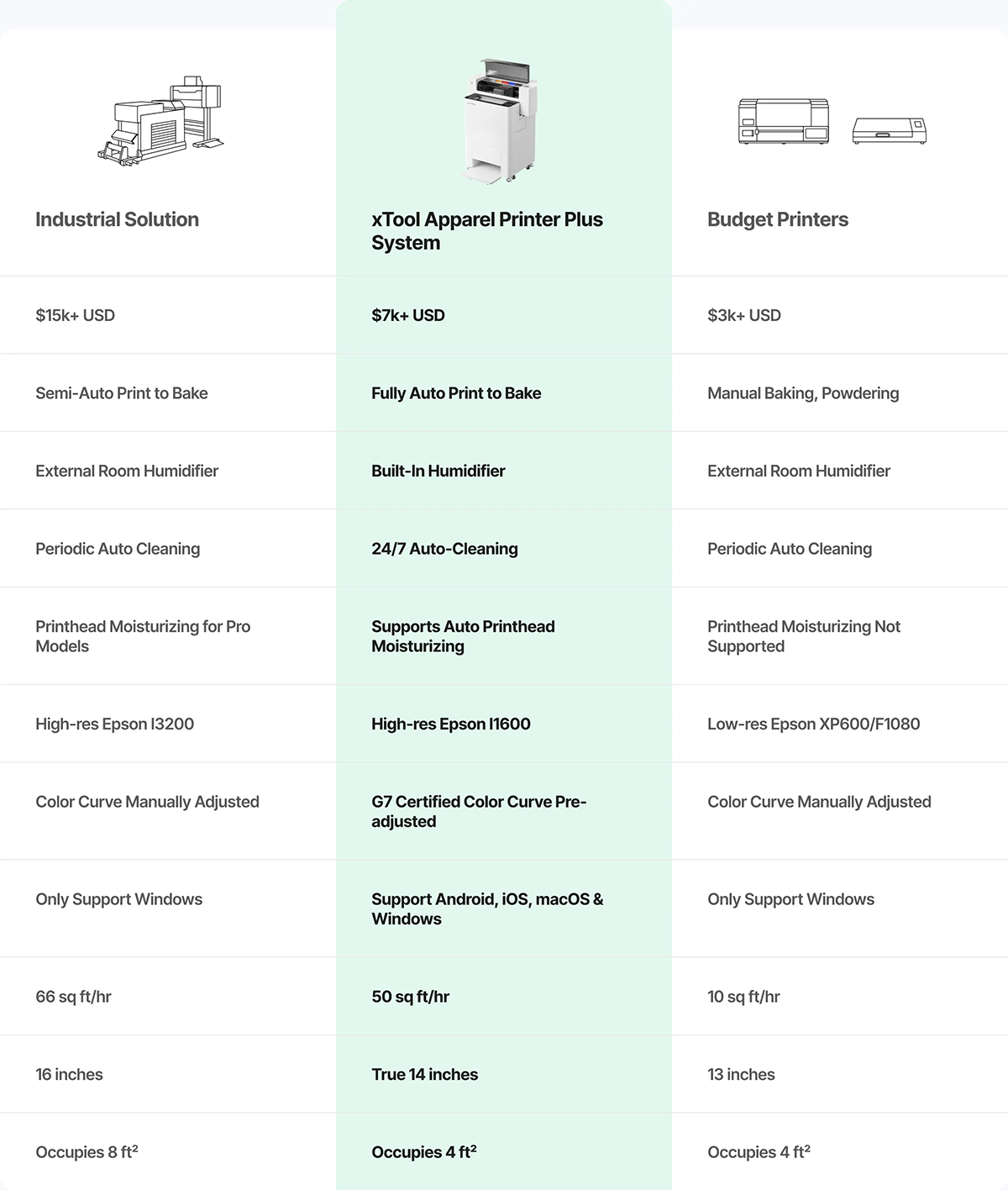

Why Choose xTool Apparel Printer Plus over Others?
Real Users. Real Results. Real ROI.
Real users, real businesses, incredible returns. See how xTool apparel printer is fueling growth for creators just like you.
Perfectly Tuned Ink, Film & Powder for Perfect Prints
Diverse Uses Unlocked
- On-site Customization
- Print On Demand
- Enterprise Merch
- Fun DIY
- More to Explore
The xTool Apparel Printer Plus delivers stunning customization in minutes for both businesses and personal projects. Boost your sales with on-site personalization, fulfill print-on-demand orders efficiently, create team merchandise effortlessly, or craft unique gifts at home with ease. Versatile and easy to use, it is your ultimate Direct-to-Film (DTF) apparel printing solution for both business and personal expression.

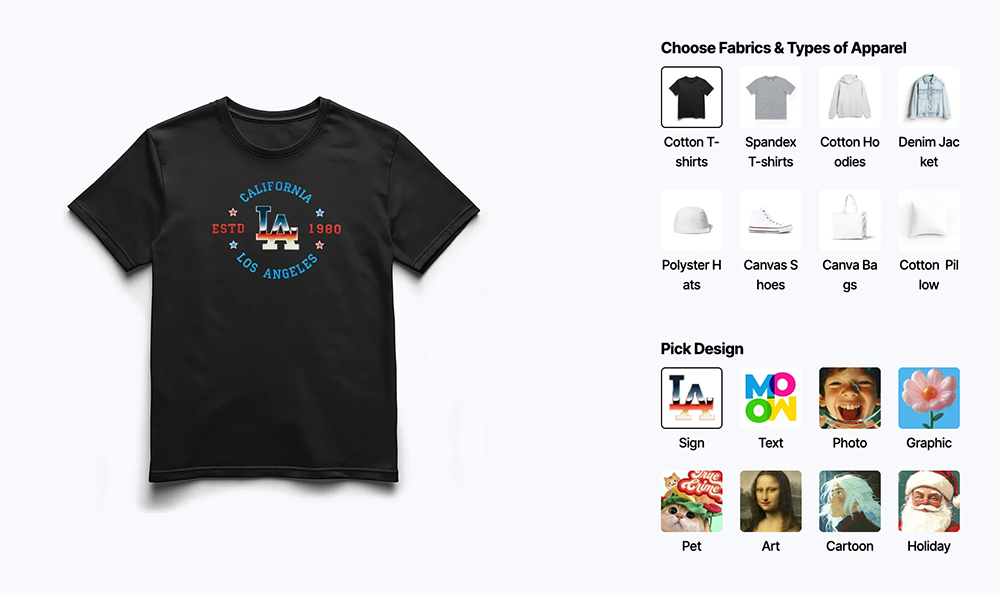

Apply to All Apparel, All Fabrics with All Designs
The xTool Apparel Printer Plus works with virtually any fabric. It delivers flawless results every time, regardless of the fabric color—light or dark. No limits. No compromises.
Customize Apparel with Zero Learning Curve
Apparel printing has never been more accessible. No skills are required—anyone can create in just three simple steps: Design, Click, and Press.

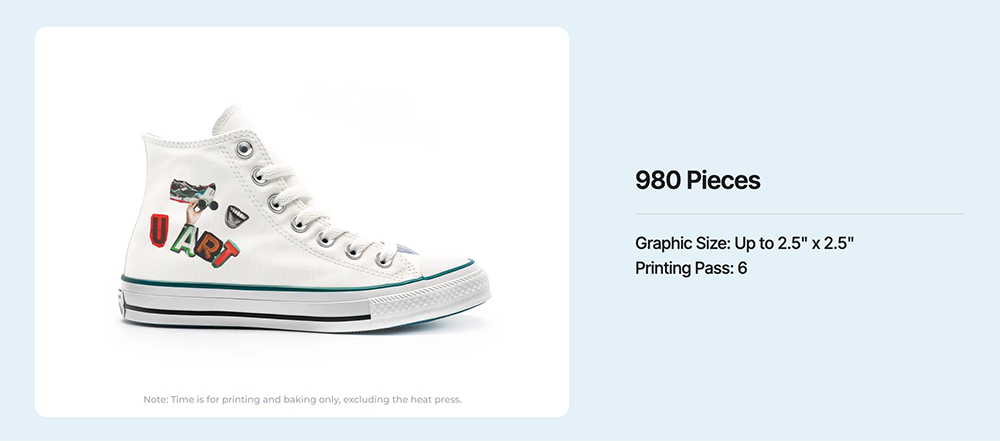

Unlock the 1-Hour Print & Bake Potential
High production efficiency is achieved with the 50 sq ft/hr DTF printer, completing 14-inch prints in 2 minutes, and the shaker oven, which reduces baking time per sheet with continuous multi-sheet baking.
- Hats
- T-Shirts
- Jeans
- Shoes
- Bags
Industry's Latest Dual Print Head Technology
With Epson I1600 dual printheads, your designs come to life at HD resolution. The two heads work together seamlessly, with one delivering vibrant colors and the other applying white ink to ensure flawless color replication, even on dark fabrics.
G7 certification represents the best practices for color consistency and accuracy in printers.
The xTool Apparel Printer Plus ensures consistent DTF prints on all fabrics by precisely controlling the gray balance and tonality. We've invested two years in calibrating the G7 Certified color curve, guaranteeing accurate color reproduction and reducing the need for frequent adjustments.
Excel in Every Aspect
This exceptional level of detail is made possible by the Epson I1600 printheads, which feature a high-density array (NPI 300) of nozzles with ultra-fine ink drops (3.8 pL)
- Sharp and Detailed Prints
- Smooth Color Layering
- Accurate Color Reproduction
HD printing is powered by Epson unique PrecisionCore technology, using MEMS and piezo elements for a high-density nozzle array to boost clarity.
Smooth gradation is ensured by Epson’s Variable Sized Droplet Technology (VSDT), which freely controls droplet volume.
Calibrated to the G7 Certified color curve, the xTool Apparel Printer ensures the colors on your screen are accurately reproduced.
24/7 SmartCycle™ Maintenance, Now More Refined
SmartCycle™ automatically monitors key machine conditions and performs routine care while your printer remains plugged in. With built-in smart humidity control, HydraFlow™ Damper, and Auto Wet Capping, Apparel Printer Plus helps reduce clogging risks and keeps daily production running more consistently—with less hands-on maintenance.
- Auto Humidification
- Auto Printheads Moisturizing
- Auto White Ink Circulation
- Auto Printheads Cleaning
A built-in sensor automatically activates humidification when internal humidity is low and stops it at the target level, helping maintain more consistent printing conditions.
Exclusive to high-end machines, Wet Capping uses moisturizing liquid to seal and protect the printheads, helping reduce clogs during extended standby.
With a simplified ink path and an upgraded integrated damper system, white ink circulates more thoroughly during printing and standby, helping reduce sedimentation and maintain consistent ink flow.
The xTool Apparel Printer Plus cleans the printhead by applying pressure within a sealed chamber to remove residual ink and impurities, effectively preventing clogging.
Professional-Grade Calibration in Just a Few Clicks
With an AI camera and intelligent recognition, automatic print head calibration eliminates the need for tedious manual adjustments. This ensures accurate reproduction of designs and colors, preventing color overlap and image distortion.

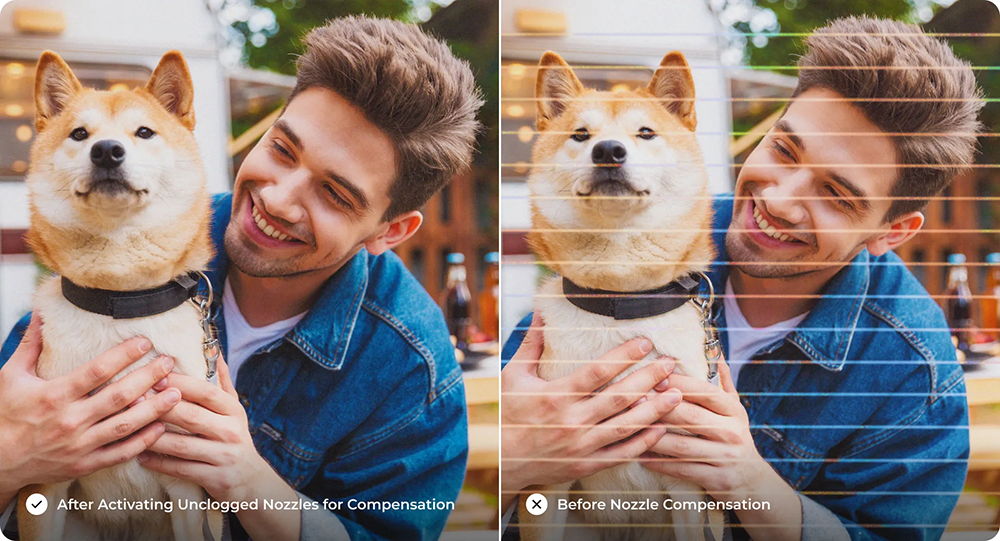

Routine Nozzle Clogging Check and Compensation
The printer performs regular checks on the nozzles by printing test patterns. Our AI camera then analyzes the output and initiates print head cleaning to resolve any issues. If a nozzle remains clogged after cleaning, the printer automatically compensates by using unclogged nozzles during printing, ensuring print quality and extending the printhead's lifespan.
All-in-One Software, Print with Ease
Compatible with Android, iOS, Windows, and macOS, xTool Studio makes DTF printing as simple as drag, drop, and print.
- Mockup
- Auto RIP Image Conversion
- Smart Nesting
- AI Restore Images
- AI Generate Images
- Cost Calculation
Directly adjust design dimensions on the apparel mockup, eliminating the need for manual measurements.
No more time spent on manual conversion. Just hit print—our software automatically converts images in the background while you print.
Intelligent layout arrangement saves time and maximizes material efficiency.
Revitalize blurry images with AI-powered enhancement. Our software sharpens and refines visuals, delivering crystal-clear prints.
No design? No problem! Transform your ideas into printable designs in just a few steps.
Effortlessly track costs for every print with one click.
Innovations in Detail

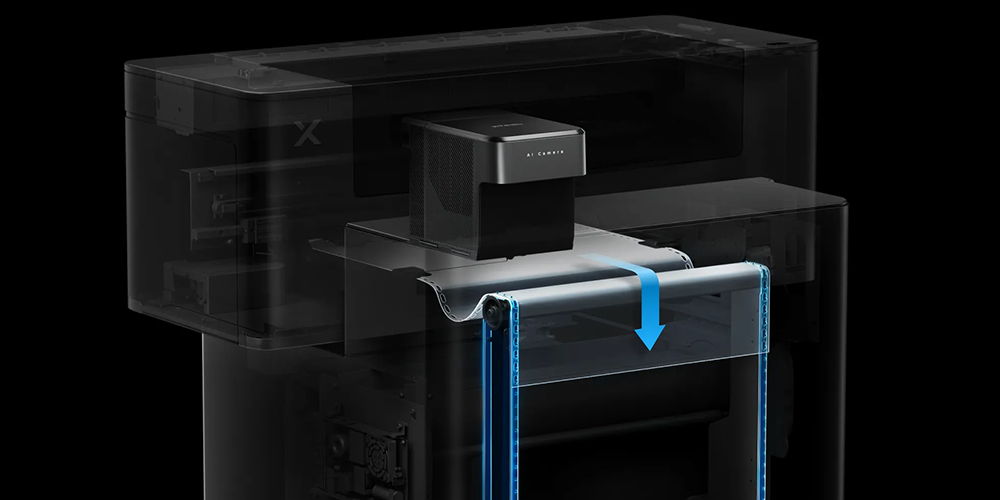

Printer to Oven Automation
Printed film is cut into single pieces and automatically transported from the printer to the oven through a precise track system.

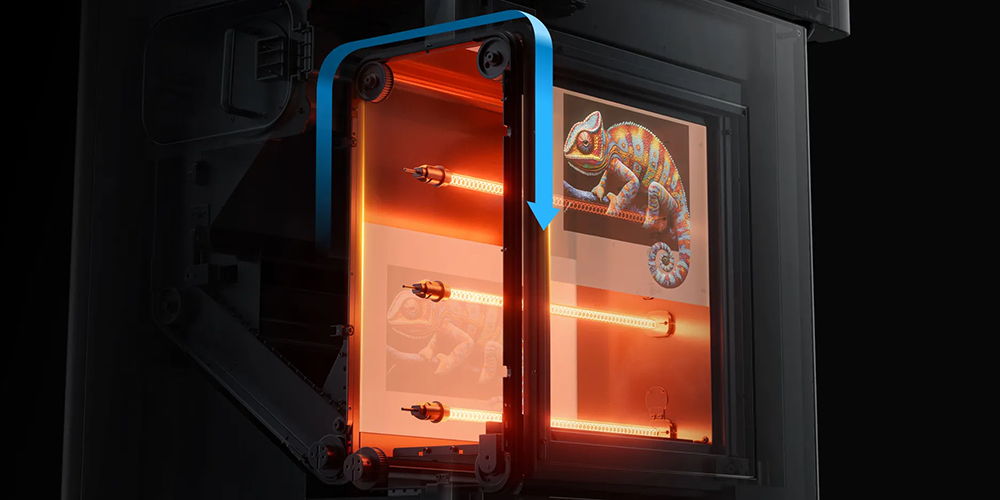

Double-Sided Baking System
A 3-in-1 oven (powder applying, shaking, and baking) that is half the size of others by optimizing the baking path.

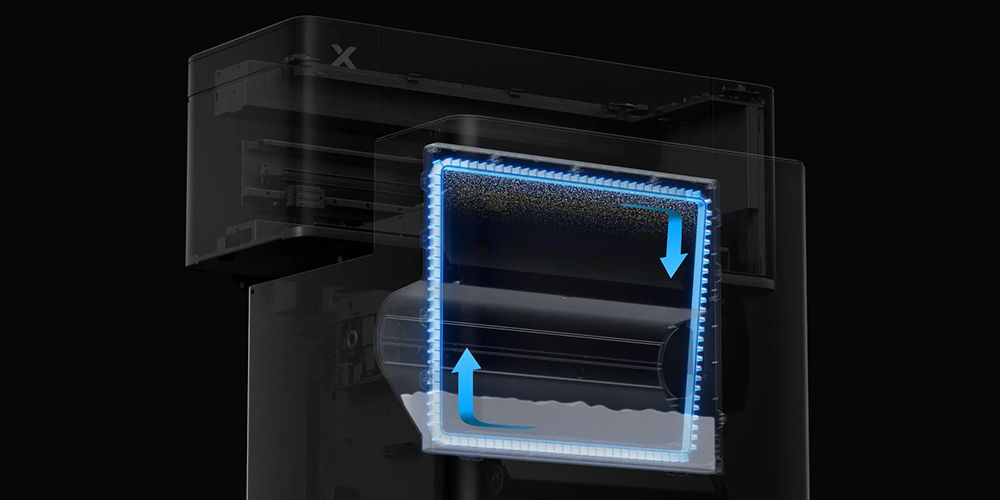

Pioneering Powder Circulation
By automatically recirculating excess powder in an enclosed system, it reduces waste and ensures safety during breathing.
Expert Support, Every Step of the Way
From a guided 1-on-1 setup to 24/7 global support, you’re backed by a team of experts dedicated to your success. Any question, any time - we're here.

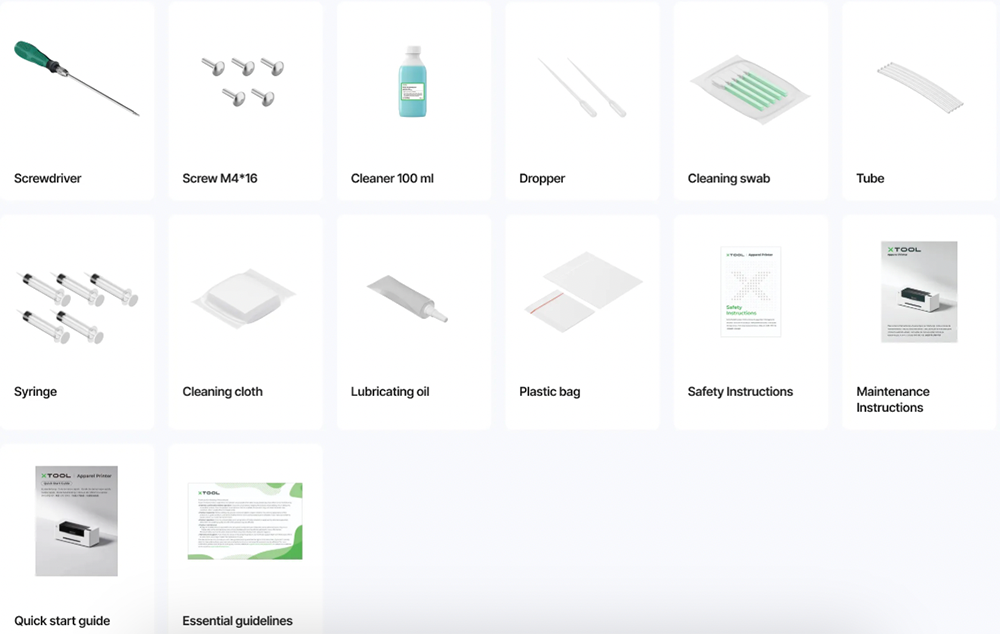

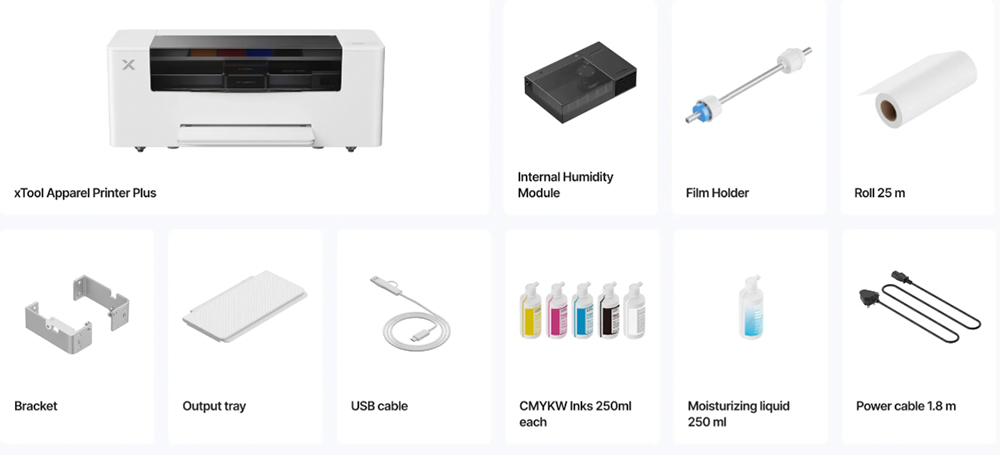

Package Contents
Package Contents
xTool Apparel Printer Plus x 1
Internal Humidity Module x 1
Film Holder x 1
Roll 25m x 1
Brackets x 2
Output Tray x 1
USB Cable x 1
CMYKW Inks 250ml x 1 each
Moisturizing Liquid 250ml x 1
Power Cable 1.8m x 1
Quick Start Guide x 1
Essentials Guide x 1
lScrewdriver x 1
Screws M4*6 x 5
Cleaner 100ml x 1
Dropper x 2
Cleaning Swab Pack x 1
Tube x 1
Syringe x 5
Cleaning Cloth x 1
Lubricating Oil x 1
Plastic Bag x 1
Safety Instructions x 1
Specifications
Product Dimensions
Printer Solo Size
35.63" x 14.37" x 14.03" (905 mm x 365 mm x 356.5 mm)
Printer Solo Weight
61.73 lbs (34 kg)
Print Width
14" (356 mm)
Maximum Print Area
14" x 18" (356mm x 600mm)
Printing Capabilities
Materials Application
All fabrics, including cotton, polyester, denim, canvas, spandex, nylon, and more
Print Head
Epson I1600 Dual Print Head
Printing Resolution
720 x 1800 DPI
Minimum Ink Drop Size
3.8 pL
Printing Speed
Up to 50 sq ft/hr (720×1200 DPI)
Printing Mode
Single Sheet-Fed
Printing Color
CMYK+WWWW
Software and Maintenance
Supported Software
xTool Creative Space (Includes AI-Powered Design Generator, RIP, Auto Nesting, Printing Layout, Machine Control, and more)
Software Compatibility
Android, iOS, macOS & Windows Supported
Calibration
AI-Powered Auto Calibration
Maintenance
- Auto Printheads Cleaning
- Auto Humidification
- Auto Ink Stir and Circulation / WIMS (White Ink Management System)
- Auto Wet Capping
- App Remote Monitoring
General
Printer Voltage
AC 100V-120V / 220V-240V
Printer Frequency
50 Hz / 60 Hz
Printer Power Consumption:
350W
Printer Sleep Mode Power Consumption
23.5W, approximately 0.5 kWh per day
Operating Temperature
59-89°F / 15-30°C (68-89°F / 20-30°C Recommended)
Operating Humidity
30%-80% RH (50%-80% RH Recommended)
FAQs
What types of printing technology does the xTool Apparel Printer Plus use?
The xTool Apparel Printer Plus is based on DTF (Direct-to-Film) printing technology, but we’ve enhanced its features to make it more efficient and beginner-friendly. The printer is fully integrated with a baking system, automating processes like powder application, shaking, and curing that traditional DTF printers require. With just one click, the system processes and bakes your design within 5 minutes. All you need to do is heat-press the printed film onto any fabric.
Additionally, we’ve streamlined the software, so you can manage everything.
What is the difference between xTool Apparel Printer and Apparel Printer Plus?
xTool Apparel Printer Plus keeps the same one click DTF workflow as the original model, including printing, cutting, powdering, shaking, and curing.
The main upgrades are focused on better daily use and easier maintenance. Apparel Printer Plus adds a built-in smart humidifier, upgraded white ink damper, and wet capping system to help protect the printhead and improve white ink stability.
It also supports mobile app features, such as checking printer status, receiving alerts, and sending print jobs within the same local network.
In short, Apparel Printer Plus offers the same smooth printing workflow, with better printhead care, more stable performance, and smarter device management.
In addition, existing xTool Apparel Printer owners will also receive corresponding upgrade gifts. Eligible users can redeem the upgrade kit to enjoy key care features similar to Apparel Printer Plus.
What are the advantages of the xTool Apparel Printer Plus compared to screen printing and sublimation?
Compared to screen printing, the xTool Apparel Printer Plus is better suited for personalized designs. It supports multi-color and complex patterns in a single print, achieving higher clarity and complexity than traditional screen printing. Plus, there’s virtually no need for manual cleaning after printing, thanks to its fully automated maintenance system, which greatly enhances efficiency and convenience.
Unlike sublimation, which only works on light-colored polyester fabrics, thexTool Apparel Printer Plus is compatible with all types and colors of fabrics. It performs especially well on the two most common clothing materials—cotton and polyester—ensuring vibrant and long-lasting designs that withstand multiple washes without fading.
As an existing xTool Apparel Printer owner, how can I get the free Upgrade Kit?
Thanks to the support and feedback from our existing Apparel Printer users, we were able to collect valuable real-world usage data and develop new improvements for the Apparel Printer Plus experience.
To show our appreciation, xTool will provide existing xTool Apparel Printer owners with a free Upgrade Kit, including the Internal Humidity Module and the White Ink Damper Upgrade Kit. These upgrades are designed to help existing users enjoy key care features similar to those introduced with Apparel Printer Plus, including humidity care and wet capping support.
Please check the email address you used to purchase your xTool Apparel Printer for your exclusive upgrade information and discount code. To redeem the kit, select the full Upgrade Kit and apply your code at checkout. Shipping fees may still apply according to the official website’s shipping policy.
If you cannot find the email or have any questions about your eligibility, please contact the xTool Support Team. We will help verify your purchase and provide the necessary upgrade information.
Is the printer difficult to maintain?
Not at all. The xTool Apparel Printer Plus features fully automated lifecycle maintenance, meaning most of the time it requires no manual intervention. As long as the printer remains plugged in, it continuously monitors internal humidity and temperature to automatically trigger printhead cleaning and white ink circulation, reducing the risk of clogging.
You can also monitor key metrics via our mobile app, which provides real-time updates. If an issue arises that the printer cannot resolve on its own, the app will alert you with specific instructions to address the problem.
What is the warranty for the Apparel Printer?
Our printers and shaker ovens come with a standard warranty of 12 months for most regions. Due to European legal requirements, the warranty period in Europe is extended to 24 months. As for the print heads, the warranty covers a single print head for a period of 6 month across all regions.
Is the film sold by xTool hot peel or cold peel? Will this affect my workflow efficiency?
The film sold by xTool is hot peel (but we prefer to call it warm peel.). Peeling at high temperatures can sometimes mean the adhesive powder is still above 110°C (230°F) and has not fully solidified. However, it does not require cooling to room temperature before peeling, significantly enhancing your workflow efficiency for commercial use.
Can third-party ink and printing film be used?
We do not recommend using third-party ink as there is a risk of clogging the printhead. However, if you are not using our baking machine, third-party printing film can be used, as long as you manually shake the powder and bake it. If you're using the OS1 Shaker Oven Machine, third-party printing film cannot be used.
Is the xTool Apparel Printer Plus compatible with all fabrics? Can prints be washed?
Yes, the printer is compatible with all types of fabrics. It performs exceptionally well on cotton and polyester, with prints that can withstand 50–100 washes while maintaining their integrity and vibrant colors.
What should the temperature setting for OS1 be? Is preheating required? How long should it be preheated?
It is recommended to set the temperature to approximately 110°C (which is 230°F).Additionally, it is recommended that you preheat before use, which can be done on the printer's control panel. It is suggested that you preheat for about 20 minutes (although you can still use it without preheating, the curing effect may not reach the optimal state).
How should the film be press? Is it necessary to press twice?
We suggest pressing at least twice, which helps to increase the durability and meet the requirements for more wash cycles (with a pressure greater than 0.7mpa). Place the fabric on the machine's heat press surface and preheat for 6 seconds.
The first press should be at 160°C (which is 320°F) for 6 seconds. After pressing, move the fabric to a cooler area to cool for about 10-20 seconds, then peel off the film. We recommend doing this quickly.
For the second press, place the pattern back on the same area and use the same heat press parameters (160°C/6S) to press again; try to place it in the middle area of the heat press machine.
If the pattern area is large, to ensure the quality of the finished product, we recommend a third press. You can place the top and bottom areas in the middle area of the heat press machine and re-press each with the same parameters (160°C/6S).
Is the Apparel Printer Plus compatible with IF2?
We do not recommend using IF2 as an exhaust fan for the xTool Apparel Printer Plus. The exhaust fumes from the apparel printers contain glycerin, which can adversely affect the IF2's motor over time and lead to a reduced lifespan.
