FireX Max Sintering Kiln
Request A Quote
To request a quote, please fill out the form below.
You can also call us at 800-689-4344 or email us at info@3duniverse.org.
Or fill out the form below, and we'll reach out within one business day.
Teachers, Educators, & Administrators
If you're part of an academic institution, we're committed to collaborating with you to arrange exclusive pricing and flexible payment options. Simply request a quote using the form below to get started, and when you're ready to order, we'll provide Net 30 payment terms for qualifying organizations.
State & Local Goverment Agencies
We offer special pricing for government agencies. 3D Universe is an authorized GSA contractor and has UEI, CAGE, and SAM codes available. Simply request a quote using the form below to get started, and when you're ready to order, we'll provide Net 30 payment terms for qualifying organizations.

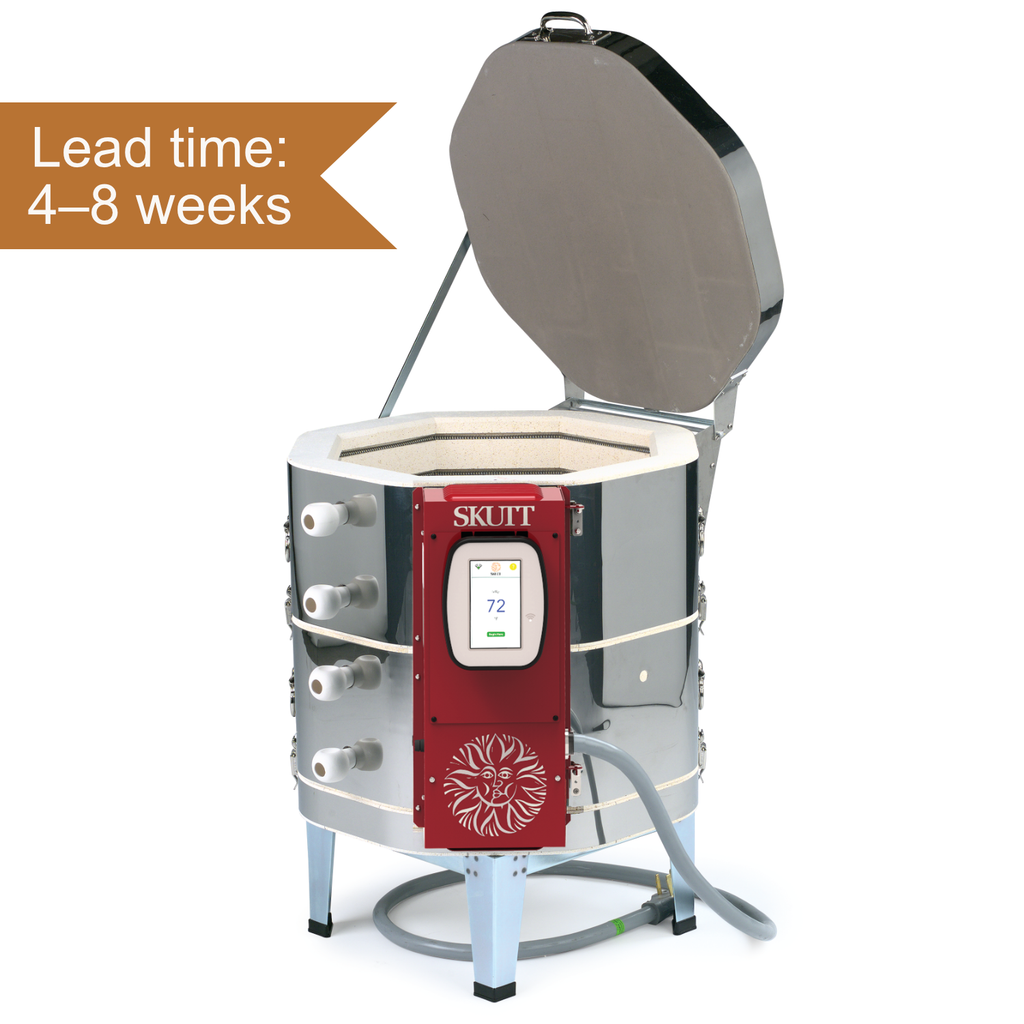

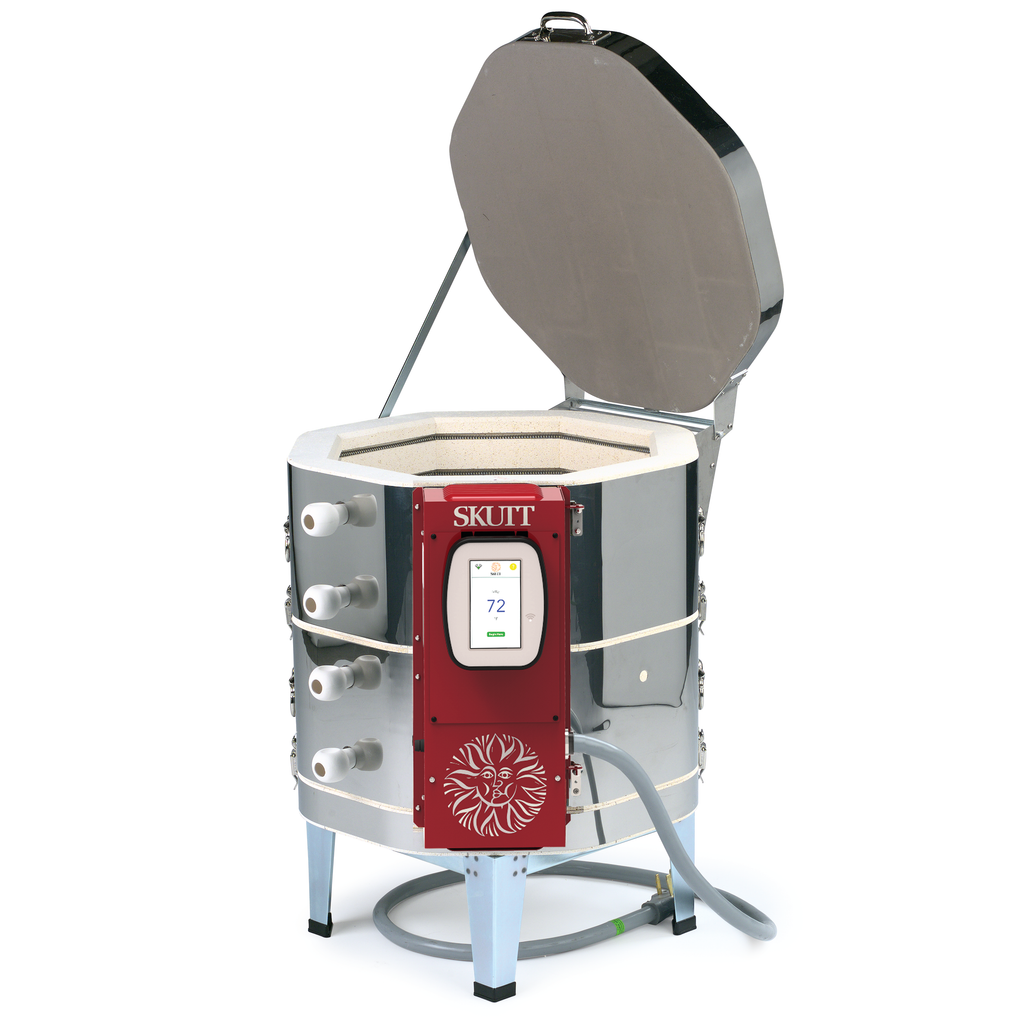

The FireX Max Sintering Kiln will sinter printed metal, glass and ceramic 3D prints with the click of a button. This kiln is designed to reach a maximum temperature of 1288°C / 2350°F.
Current lead time: 4-8 weeks
How it works:
3D Print, Pack, Sinter, Metal!
"Pack" the printed part in Sintering Refractory Ballast, cover with Sintering Carbon, and load the part in the Kiln. Select the parameters for sintering, click start and your parts will soon turn to functional metal objects!
Proper ventilation is required while operating kiln. Kilns operate at a very high temperature, please use with extreme caution.
Specs:
240v, 26.7A, 6400w, Single Phase OR
208v, 26.7A, 5550w, Single Phase
Max. Temperature: 1288°C/2350°F
Controller: KilnMaster Touchscreen
Plug: 6-50P
UL Listed
Compatible Materials:
Bronze, Copper, H13 Tool Steel, Inconel 718, M300 Tool Steel, Stainless Steel 17-4, Stainless Steel 316L, Pyrex® (Borosilicate), Amaco 46-D, and Porcelain
Sintering Area / Chamber Volume:
16.5" Diameter x 18" Depth /
419mm Diameter x 457mm Depth
Kiln Outer Dimensions:
22.5" Diameter x 32" Height /
572mm Diameter x 813mm Height
Shipping Weight: 145lbs
Only available in the USA
