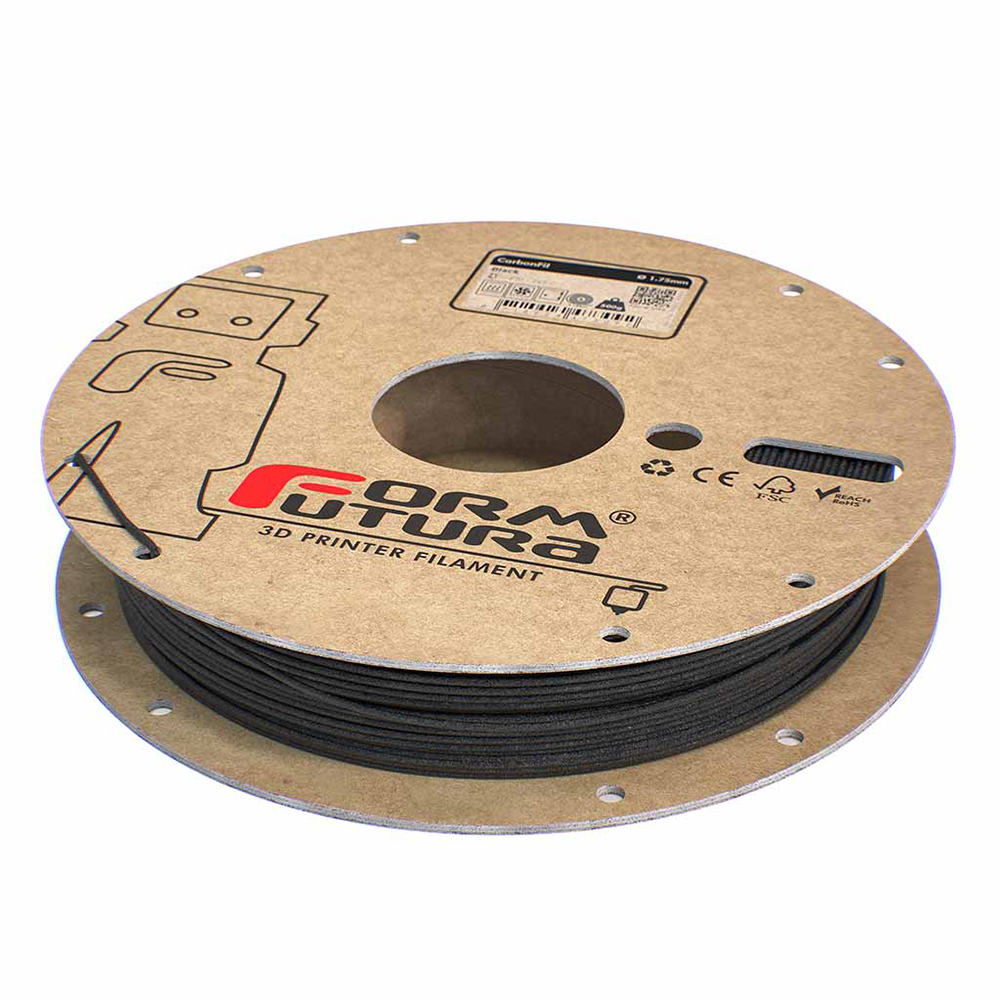

FormFutura CarbonFil Carbon Fiber PETG 3D Printer Filament (1.75mm, 500g, Black)
FormFutura CarbonFil is a 15% carbon fiber reinforced PETG based 3D printer filament that is extremely stiff. CarbonFil 3D prints 3D prints with a high dimensional accuracy and virtually no warping. It is twice as stiff as HDglass and yet it is even 10% more impact resistant.
NOTE: 3D Universe is authorized to sell this product in the United States of America, only.
Request A Quote
To request a quote, add everything you need to your cart, head to the cart page, and click the "Request a Quote for Items in Cart" button.
You can also call us at 800-689-4344 or email us at info@3duniverse.org.
Or fill out the form below, and we'll reach out within one business day.
Teachers, Educators, & Administrators
If you're part of an academic institution, we're committed to collaborating with you to arrange exclusive pricing and flexible payment options. Simply request a quote using the form below to get started, and when you're ready to order, we'll provide Net 30 payment terms for qualifying organizations.
State & Local Goverment Agencies
We offer special pricing for government agencies. 3D Universe is an authorized GSA contractor and has UEI, CAGE, and SAM codes available. Simply request a quote using the form below to get started, and when you're ready to order, we'll provide Net 30 payment terms for qualifying organizations.
FormFutura CarbonFil Carbon Fiber PETG
FormFutura CarbonFil is a 15% carbon fiber reinforced PETG based 3D printer filament that is extremely stiff. CarbonFil 3D prints 3D prints with a high dimensional accuracy and virtually no warping.
Based upon the unique PETG blend of the HDglass compound and reinforced with 15% ultra-light and relatively long stringer carbon fibres, CarbonFil in an exceptionally stiff carbon-fibre reinforced 3D printer filament.
CarbonFil is twice as stiff as HDglass and yet it is even 10% more impact resistant, which is a remarkable feature for carbon-fibre reinforced filament.
Unique features
- Reinforced with 15% ultra-lightweight and relatively long carbon fibre stringers
- Extremely stiff
- Two times as stiff as HDglass (or even more compared to other PETG-based filaments)
- Great impact resistance
- 10% more impact resistant than HDglass (or even more compared to other PETG-based filaments)
- Very easy to print
- Nearly warp-free, improved thermal stability, nearly perfect first layer and inter-layer adhesion
- Good first layer adhesion to a heated glass print bed and many other surfaces
- Heat deflection temperature of ± 85° C
- Great dimensional stability
Abrasiveness
Please be aware that CarbonFil filaments contain a relatively high concentration of extremely hard carbon fibres, which have an abrasive nature. In general these carbon fibres will accelerate the nozzle-wear of brass nozzles, much faster than unfilled filaments. We recommend to use nozzles from stainless steel or other hardened alloys.
More Information
Title FormFutura CarbonFil Carbon Fiber PETG 3D Printer Filament
Manufacturer FormFutura
Base Material Carbon Fibre
Difficulty Easy
Nozzle Temperature 230℃ - 265℃
Heated Bed Required? No
Print Bed Temperature 0°C - 85°C
Bed Adhesion EasyFix Nr. I, Glass Plate, Kapton tape, PET tape, Buildtak
Enclosure Required? No
Nozzle Size ≥ 0.4mm
Print Speed Low
Fan Speed 20 - 50%
Flow Rate 100%
Retraction ± 5mm
Spool Weight 500g
Drying No
Minimum Nozzle Temp 230℃
CA Prop 65 Y
Dimensional Accuracy < +/- 0.05mm
Other Recommendations Abrasiveness: Due to the relatively high concentration of extremely hard carbon fibers, which have an abrasive nature, a hardened steel nozzle is recommended.
Settings Note: The settings above are meant as a guide to find your optimal print settings. They should work well for most printers, but every printer is different. Please feel free to experiment outside these ranges if you think it is suitable for your printer.
